Figure Caption

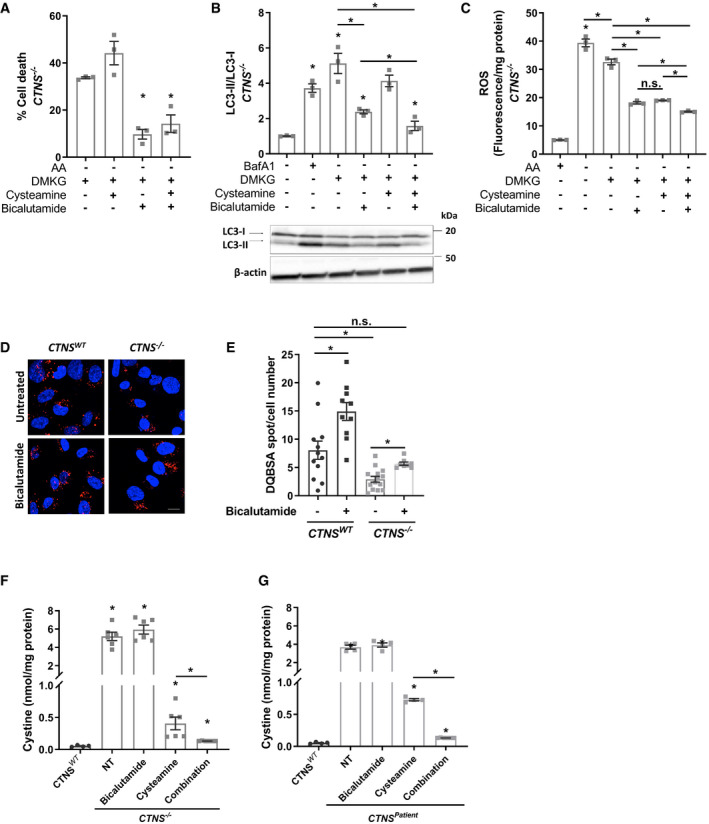

G Cysteamine–bicalutamide combination treatment efficiently lowers lysosomal cystine, abolishes αKG‐mediated autophagy distortion and cell death in cystinotic proximal tubule cells

A

Cell viability test of DMKG (2 mM)‐treated CRISPR‐generated cystinotic cells (CTNS^−/−) upon pre‐treatment with cysteamine (100 µM), bicalutamide (35 µM), and a combination of cysteamine and bicalutamide (100 and 35 µM, respectively). Results are shown relative to the starved condition (n = 3).

B

Western blotting and densitometric analyses for LC3‐II/LC3‐I ratio in DMKG (2 mM)‐treated CTNS^WT and CTNS^−/− cells upon pre‐treatment with cysteamine, bicalutamide, and a combination of cysteamine and bicalutamide (n = 3).

C

Relative reactive oxygen species (ROS/mg protein) production in DMKG‐treated CTNS^WT and CTNS^−/− cells upon pre‐treatment with cysteamine, bicalutamide, and a combination of cysteamine and bicalutamide (n = 3).

D, E

Representative confocal micrographs and quantification of DQ‐BSA in CTNS^WT, and CTNS^−/− cells upon treatment with bicalutamide. Scale bars are 20 µm (n = 8–14 quantified images).

F

Quantification of cystine levels (nmol/mg protein) by HPLC‐MS/MS in CTNS^−/− in the absence of the drug (NT) (n = 4) or upon treatment with cysteamine (n = 6), bicalutamide (n = 6), and a combination of cysteamine and bicalutamide (n = 6).

G

Quantification of cystine levels (nmol/mg protein) by HPLC‐MS/MS in CTNS^Patient in the absence of the drug (NT) (n = 4) or upon treatment with cysteamine (n = 4), bicalutamide (n = 4), and a combination of cysteamine and bicalutamide (n = 6).

Data information: Data are expressed as mean ± SEM. *P‐values < 0.05 were considered to be significant. One‐way ANOVA with Dunnett’s correction (A, B, C, D, E, F and G) or unpaired t‐test (B, C, E, F and G). Exact P‐values and statistical tests are listed in Appendix Table S1.

Source data are available online for this figure.
