Figure 4

Figure 4

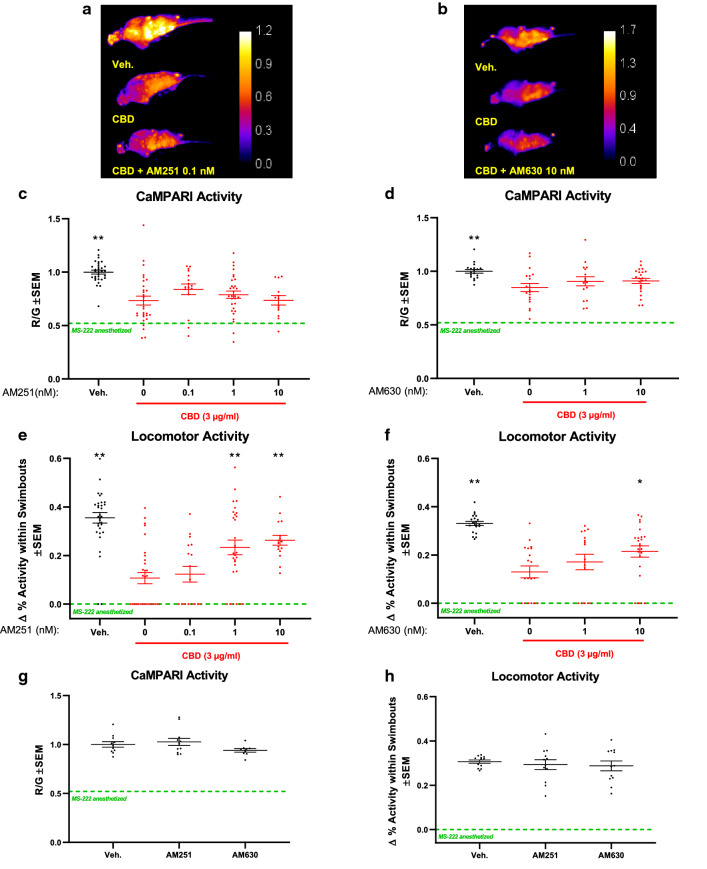

Cannabinoid receptor 1 (CB1R) and CB2R are both involved in CBD-mediated reduction of locomotor activity. Zebrafish larvae were exposed to CBD (3 µg/ml) with CB1R- and CB2R inhibitors, AM251 and AM630, respectively. (a) and (b), Exemplar CaMPARI heat maps showing R/G ratios obtained at 4 dpf. (c) and (d), Corresponding quantifications showing CBD mediated-reduction of neural activity is not fully rescued when CB1R is inhibited with AM251 or CB2R with AM630 in the nanomolar (nM) range. (e) and (f), Locomotor activity at 5 dpf shows a clear rescue when inhibiting either CB1R or CB2R with 0.1 nM AM251, or 10 nM AM630, respectively. (g) and (h), shows that applying AM251 or AM630 without CBD did not affect CaMPARI activity or locomotion. R/G is indicated by the calibration bar. All samples contained the same amount of vehicle DMSO (0.1%) and MeOH (0.3%) including the vehicle control (Veh.). Green-dashed lines depict mean values for MS-222 anesthetized samples. Biological replicates are n = 13–30. *is p < 0.05; **p < 0.01 compared to CBD.
