Fig. 5

ID: ZDB-IMAGE-210519-20
Publication: Zhang et al., 2021 - Rational construction of a reversible arylazo-based NIR probe for cycling hypoxia imaging in vivo
All Figures: Figures for Zhang et al., 2021


Figure Caption

Fig. 5 Reversible hypoxia imaging in zebrafish.

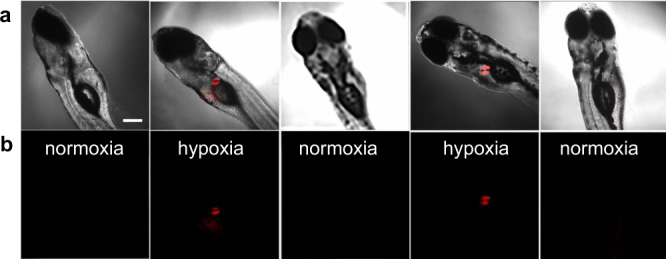

Confocal imaging of a 6-day-old zebrafish embryos injected with 2 nL HDSF (2 μM). Images were collected for zebrafish embryos underwent water rinse (normoxia) and BDM (15 mM, 5 min) treatment (hypoxia) successively in cycle. a Overlaps of bright field and fluorescence images, b fluorescence images. The results are representative of three biologically independent experiments. λ_ex, 633 nm. Scale bars: 200 μm.
