Figure 2—figure supplement 1.

ID: ZDB-IMAGE-210514-32
Source: Figures for Yi et al., 2021


Figure Caption

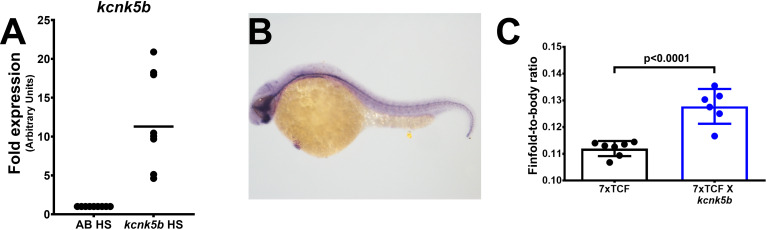

Figure 2—figure supplement 1. Controls for shh expression and transgenic expression of Kcnk5b in embryos.

(A) Transgenic expression of Kcnk5b after single heat shock pulse induces transgene expression. (B) In situ probe for shh shows expected expression pattern. (C) Ratios of finfold and body length measurements of caudal finfold along the anterioposterior axes of 3 dpf single transgenic Tg[7XTCF-Xla.sam:mCherry] and double transgenic Tg[7XTCF-Xla.sam:mCherry] X Tg[hsp70:kcnk5b-GFP] after 3x once-a-day heat-shock pulse, 30 min each. Each panel represents three or more experiments. The graphed data show all technical replicates.
