Figure 4.

ID: ZDB-IMAGE-210512-31
Publication: Zhang et al., 2021 - Ablation of Mto1 in zebrafish exhibited hypertrophic cardiomyopathy manifested by mitochondrion RNA maturation deficiency
All Figures: Figures for Zhang et al., 2021


Figure Caption

Figure 4.

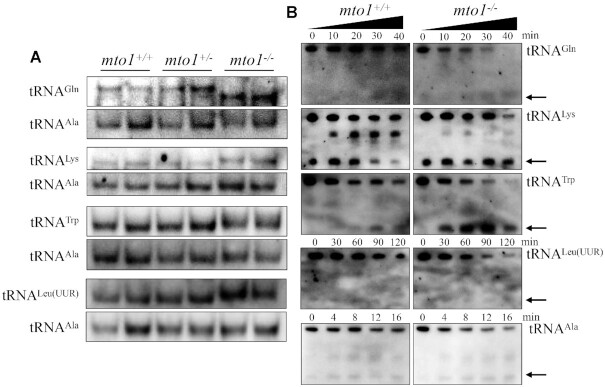

Analysis of mitochondrial tRNA conformation. (A) Northern blot analysis of tRNAs under native condition. Five micrograms of total RNAs from mutant and WT zebrafish were electrophoresed through a native polyacrylamide gel, electroblotted and hybridized with the DIG-labeled oligonucleotide probes as tRNA^Gln, tRNA^Trp, tRNA^Leu(UUR), tRNA^Lys and tRNA^Ala, respectively. (B) S1 digestion patterns of tRNA^Gln, tRNA^Trp, tRNA^Leu(UUR), tRNA^Lys and tRNA^Ala. Two micrograms of RNAs from mto1^−/− and WT zebrafish were used for the S1 cleavage reaction at various lengths (from 0 to 120 min). Cleavage products of tRNAs were resolved in 10% denaturating PAGE gels with 8 M urea, electroblotted and hybridized with 3′ end DIG-labeled oligonucleotide probes specific for tRNA^Gln, tRNA^Trp, tRNA^Leu(UUR), tRNA^Lys and tRNA^Ala, respectively. Arrows denoted the 30–40 nt regions showing 3′ tRNA half.
