Fig. 6

ID: ZDB-IMAGE-210503-13
Publication: Yilmaz et al., 2021 - Knock out of specific maternal vitellogenins in zebrafish (Danio rerio) evokes vital changes in egg proteomic profiles that resemble the phenotype of poor quality eggs
All Figures: Figures for Yilmaz et al., 2021


Figure Caption

Fig. 6

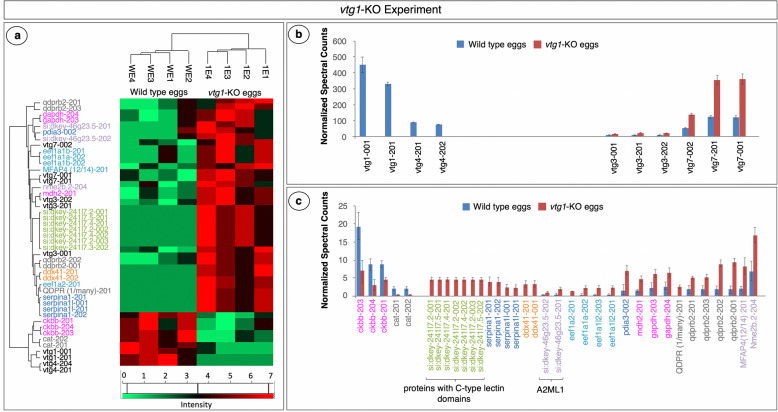

Proteins with significant differences in abundance in vtg1-KO Experiment. Panel a. HeatMap representation of differences in abundance based on normalized spectral counts. Panel b. Vitellogenins with significant differences in abundance between vtg1-KO eggs and Wt eggs. Panel c. Other proteins with significant differences in abundance between vtg1-KO eggs and Wt eggs. All proteins are named for the transcript(s) to which spectra were mapped; for full protein names, see Table S1. Only proteins that were identified in > 4 samples were included in this analysis (t-test, p < 0.05, followed by Benjamini Hochberg correction for multiple tests, p < 0.05). Vertical bars indicate mean N-SC values (N = 4 per group) and vertical brackets indicate SEM. Protein (transcript) labels are color-coded to indicate functional categories to which the proteins were attributed (Fig. 1)
