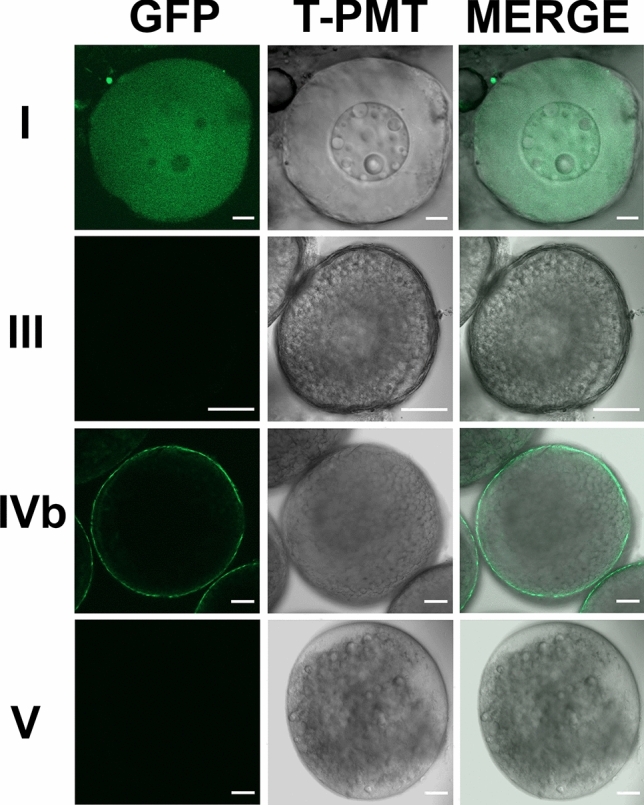

Figure 3

Strong expression of Adamts9 in preovulatory follicles, weak or no expression in immature ovarian follicles or ovulated oocytes in Adamts9 transgenic lines (Tg(adamts9:GFP)). The expression of Adamts9 was determined by EGFP expression driven by adamts9 promoters located in a 4.5 kb upstream sequence of adamts9 start codon. Representative confocal slice images of stage I (immature pre-vitellogenic), III (immature vitellogenic), IVb (mature & preovulatory) follicles and stage V ovulated oocytes were shown. Follicles or oocytes were confocal imaged under EGFP and transmit light (T-PMT) channels. Similar expression was confirmed in the follicles or oocytes of several F1 and F2 adult females from five independent transgenic lines. Scale bar: 10 μm (stage I); 100 μm (stages III, IVb, V).
