Figure 5

ID: ZDB-IMAGE-210409-232
Publication: Ren et al., 2021 - Characterization of Biological Pathways Regulating Acute Cold Resistance of Zebrafish
All Figures: Figures for Ren et al., 2021


Figure Caption

Figure 5

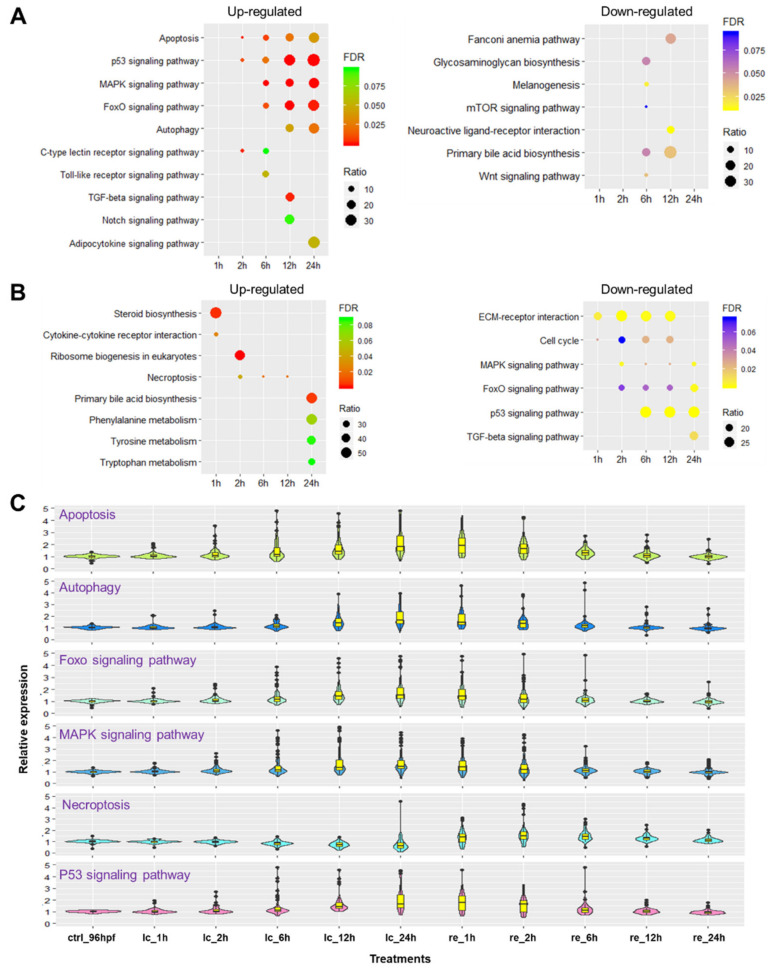

Kyoto encyclopedia of genes and genomes (KEGG) pathway enrichments for the genes differentially expressed upon cold stress and subsequent rewarming. (A,B) Bubble plots indicate the enriched KEGG pathways for the up- (left panel) and down-regulated (right panel) genes. The DEGs at different time points under lethal cold stress (A) and during recovery (B) were used for analysis. The pathway terms are shown on the left. Figure legends including FDR and ratio (percent of the identified genes to all the genes in a certain pathway) are shown on the right. (C) Violin plots demonstrate the relative expression abundance of genes associated with the identified pathways. Expression of the genes was normalized to the average level of the untreated controls at 96 hpf (ctrl_96hpf).
