ZFIN Image: Wu et al., 2021, Figure 2


Figure Caption

Figure 2

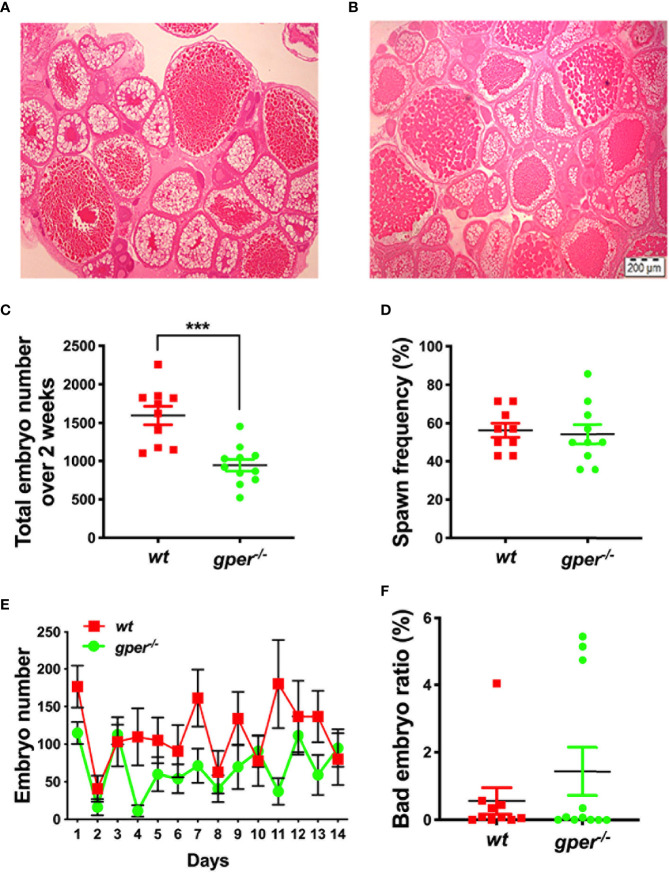

Reduced fertility in gper^−/− female zebrafish. Hematoxylin & Eosin staining of a representative section from wildtype (wt) (A) and gper^−/−(B) ovaries (n = 3 for each genotype). Both representative pictures depict Stage I–Stage IV oocytes. (C) Total number of embryos per female produced by gper^−/− female zebrafish individually paired with fertility confirmed wt males over a -two-week period following two-week acclimation was significantly less than those from wt pairs. (D) Averaged spawn frequency (%) in two weeks. (E) The number of embryos per female produced daily in gper⁻^/⁻ was less than those from wt. (F) No significant difference in the rate of inviable embryos obtained in gper⁻^/⁻ compared to those in wt. n = 10 pairs for wt, n = 11 pairs for gper⁻^/⁻. ***p < 0.001. Scale bar: 200µm.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Endocrinol (Lausanne)
