Fig. 4

ID: ZDB-IMAGE-210402-10
Publication: Square et al., 2021 - Distinct tooth regeneration systems deploy a conserved battery of genes
All Figures: Figures for Square et al., 2021


Figure Caption

Fig. 4

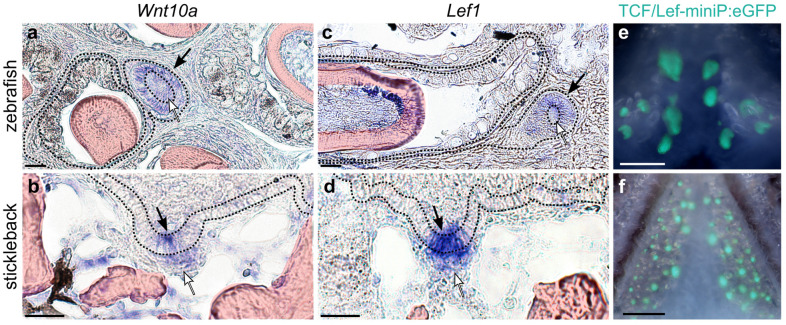

Wnt signaling in zebrafish and stickleback replacement tooth germs. Black arrows mark replacement tooth germ epithelium, white arrows mark replacement tooth germ mesenchyme. awnt10a expression in a cap-stage zebrafish replacement tooth germ. bWnt10a expression in a bud-stage stickleback replacement tooth germ. Note concentrated expression in the distalmost epithelium (arrow). clef1 expression in a cap-stage zebrafish replacement tooth germ. dLef1 expression in a bud-stage stickleback replacement tooth germ. e, f TCF/Lef synthetic Wnt activity reporter is active in adult replacement tooth germs. Scale bars in a–d = 20 μm; e and f = 500 μm
