FIGURE 1

ID: ZDB-IMAGE-210328-6
Publication: Czimer et al., 2021 - A New Zebrafish Model for Pseudoxanthoma Elasticum
All Figures: Figures for Czimer et al., 2021


Figure Caption

FIGURE 1

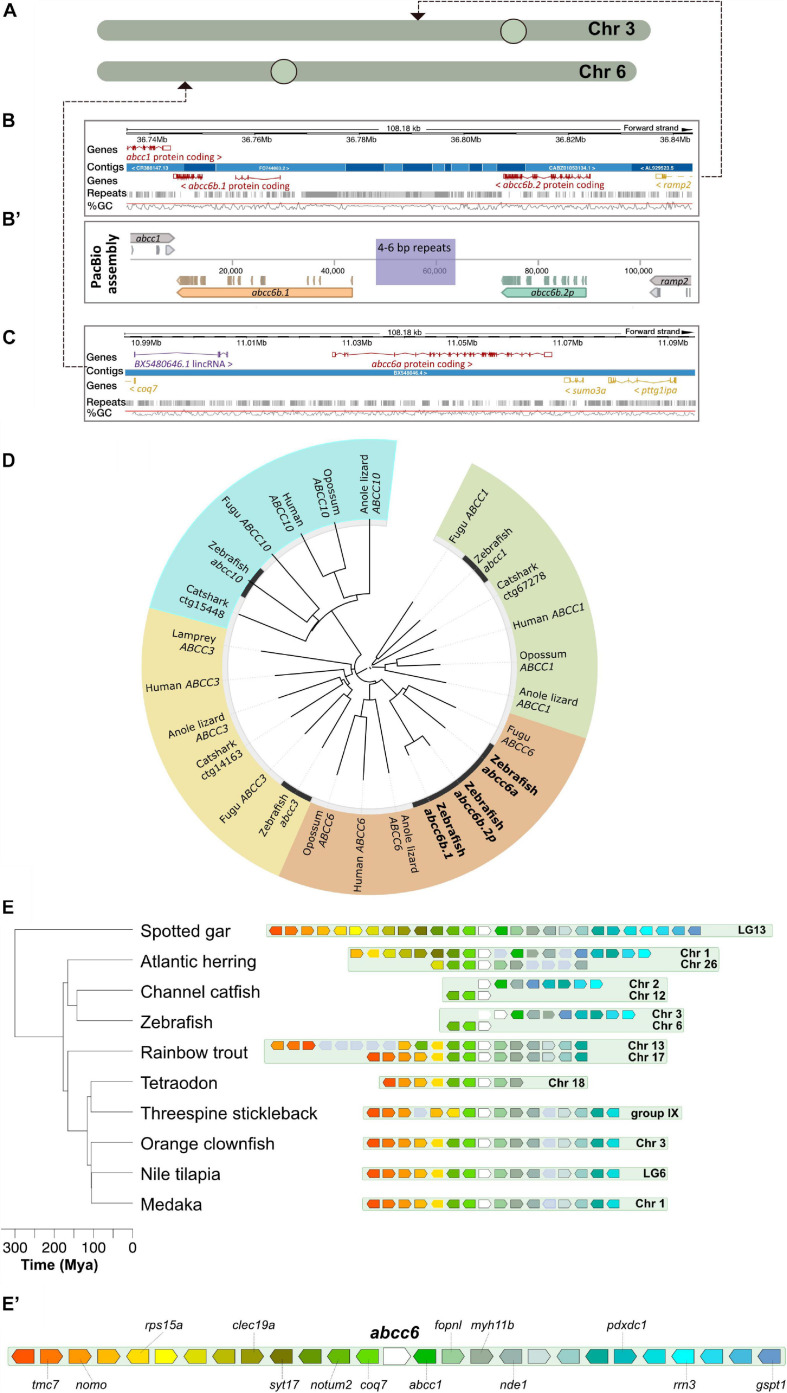

Annotation and phylogenetic relationships of the zebrafish ABCC6 orthologs. (A) Chromosomal positions of zebrafish ABCC6 orthologs. (B,B’) Ensembl (GRCz11) assembly of the respective chromosomal 3 regions with abcc6b.1 and abcc6b.2p and reassembly of this genomic region using PacBio reads. Note the abundance of repeats in the interval between abcc6b.1 and abcc6b.2p coinciding with the highly fragmented Ensembl assembly. (C) Ensembl (GRCz11) assembly of the abcc6a containing chromosomal six region. (D) Phylogenetic analysis of zebrafish ABCC1, ABCC3, ABCC6, and ABCC10 paralogs. (E,E’) Syntenic analysis of the abcc6 genomic region in different teleost species using the spotted gar genome as reference (see text for details).
