Figure Caption

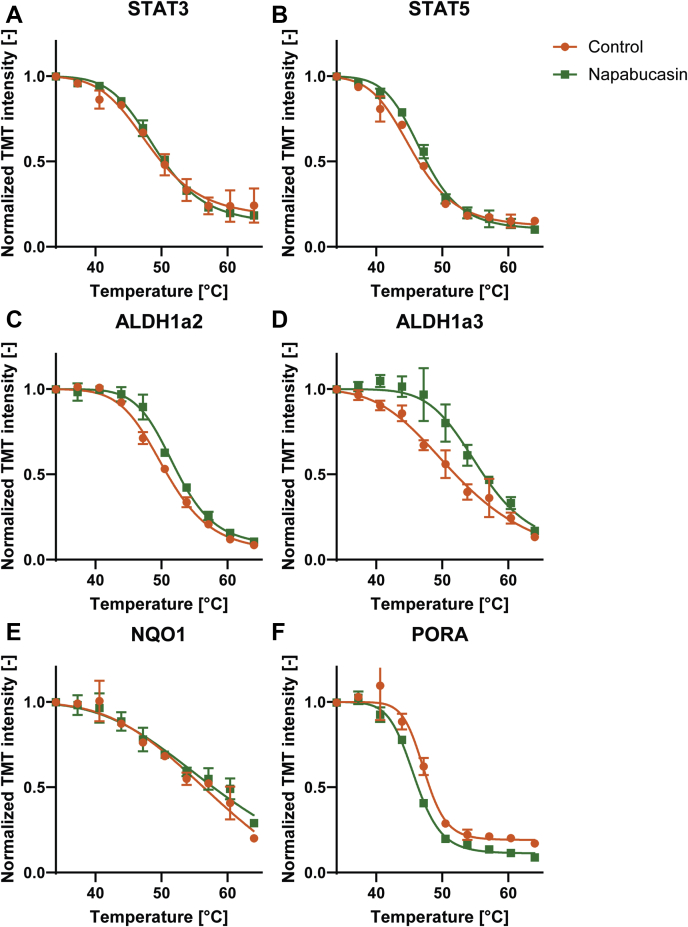

Fig. 3
TPP indicates differential effects of napabucasin treatment on selected proteins. Stat33 (A) does not show any shift, whereas Stat5 (B) shows a small shift. However, a shift was detected in Aldh1a2 (C) and Aldh1a3 (D). The known interactor of napabucasin Nqo1 (E) shows no shift. Interestingly, another known interactor, Pora, (F) shows a shift indicating destabilization. Data points (n = 2 independent experiments) are shown as mean ± SEM, melting curve fitting was performed according to chemical denaturation theory.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Mol. Cell. Proteomics
