ZFIN Image: Guo et al., 2021, Fig. 1.


Figure Caption

Fig. 1.

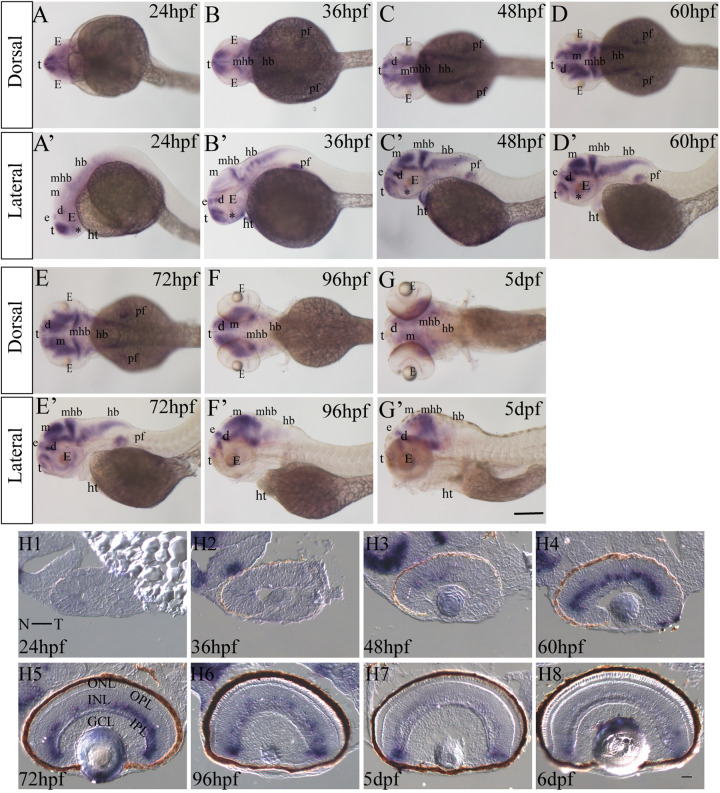

Expression pattern of lhx9 in zebrafish embryogenesis and retinogenesis. (A–G′) lhx9 expressed in the zebrafish embryo at 24 hpf, 48 hpf, 60 hpf, 72 hpf, 96 hpf, and 5 dpf. t, telencephalon; E, eye; e, epiphysis; d, diencephalon; m, mesencephalon; mhb, mid-hindbrain boundary; hb, hindbrain; ht, heart; pf, pectoral fin; asterisk, hypothalamus; Scale bar, 500 μm. (H1–H8) The expression of lhx9 in the zebrafish retina at 24 hpf, 36 hpf, 48 hpf, 60 hpf, 72 hpf, 96 hpf, 5 dpf, and 6 dpf. Figures are horizontal sections along the temporal-nasal axis (T–N). ONL, outer nuclear layer; INL, inner nuclear layer; GCL, ganglion cell layer; OPL, outer plexiform layer; IPL, inner plexiform layer. Scale bar=20 μm.
