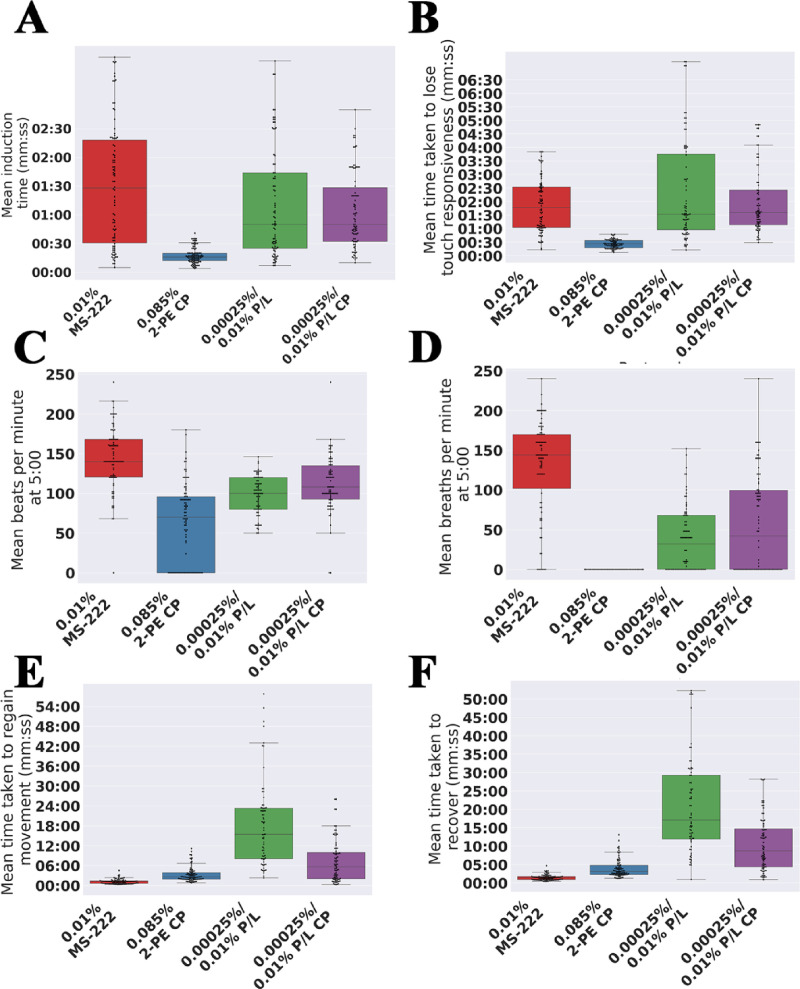

Fig 5 Protocols 1, 4, 5 and 6 vary in the average time taken to induce, lose touch responsiveness, regain movement, regain equilibrium as well as respiratory rate when repeatedly anaesthetised every 4 days.

Barplot of the mean (A) induction time, (B) time taken to lose touch responsivity, (C) heartbeats per minute at 5:00, (D) visible breaths per minute at 5:00, (E) time taken to regain movement and (F) time taken to fully recover against repeat number for each protocol 1,4,5 and 6. Mean taken over all repeats. P/L corresponds to Propofol/Lidocaine, PE corresponds to phenoxyethanol, CP corresponds to Cotton Pad maintenance.
