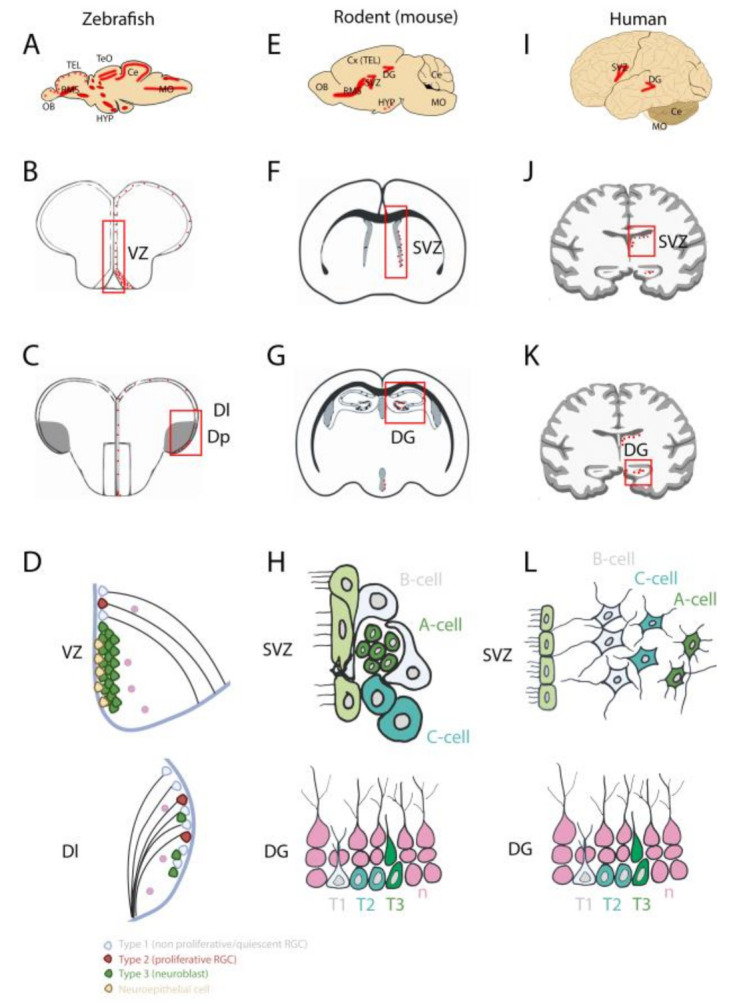

Figure 1 Localization and cellular organization of the main neurogenic niches in the brain of adult zebrafish, mouse, and humans. (A,E,I): sagittal sections of zebrafish (A), mouse (E) and human (I) brains with the main proliferative regions (neurogenic niches) shown in red. The mammalian brain displays only two main neurogenic niches: the subventricular zone (SVZ) of the lateral ventricles and subgranular zone of the dentate gyrus (DG) of the hippocampus. Note that the mammalian hypothalamus (HYP) also exhibits discrete neurogenesis. The zebrafish brain displays numerous niches throughout the brain. (B–K): transversal sections through the brain, marking the main neurogenic niches of the respective species shown in (A,E,I). (D–L): Cell composition of the neurogenic niches in zebrafish, mice and humans. (D): The main neurogenic niches in the subpallial ventricular zone (VZ), the dorsolateral telencephalon (Dl) in zebrafish, and their respective homologues in mammals: the SVZ and the DG of the hippocampus in mouse and humans. In zebrafish, type 1 and type 2 cells are quiescent and proliferative radial glial cells (RGC), respectively (quiescent and proliferative neural stem cells (NSCs)). Type 3 cells are proliferative neuroblasts. The neuroepithelial cells are NSCs from the subpallium. (H,L): In mammals, the NSCs are shown in grey (B-cells and Type 1 -T1-), the transient amplifying cells in light green (C-Cells and Type -T2-) and the neuroblasts in dark green (A-cells and Type 3 -T3-). Note the hypocellular gap in the human SVZ compared to mice. Ce: cerebellum; Cx: cerebral cortex; Dl: lateral zone of the dorsal telencephalic area; DG: dentate gyrus of the hippocampus; Dp: posterior zone of dorsal telencephalic area; HYP: hypothalamus; MO: medulla oblongata; OB: Olfactory bulbs; RGC: radial glial cell; RMS: rostral migratory stream; SVZ: subventricular zone VZ: ventricular zone; TEL: telencephalon; TeO: optic tectum.
