Fig. 7.

ID: ZDB-IMAGE-210305-8
Publication: Bastos de Oliveira et al., 2021 - Vasohibin-1 selectively regulates secondary sprouting and lymphangiogenesis in the zebrafish trunk
All Figures: Figures for Bastos de Oliveira et al., 2021


Figure Caption

Fig. 7.

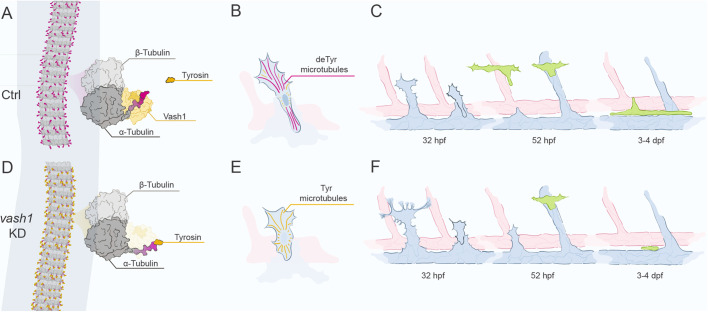

Model of Vash1 function in zebrafish trunk. (A-F) Microtubule detyrosination is catalysed by Vash1 (A), particularly occurring in secondary sprouts (B). In the secondary sprouts, Vash1-mediated detyrosinated microtubules keep control of the number of sprouting cells, cell proliferation and cell protrusion formation to avoid over-sprouting (C). Secondary sprouts with correctly detyrosinated microtubules form PLs at 2 dpf, which in turn form the TD at 3-4 dpf (C). Upon vash1 KD, microtubules of secondary sprouts are no longer detyrosinated (D,E). Cells of secondary sprouts over-proliferate, fail to form PLs and a functional TD, although PLs forming from veins still occur (F).
