Figure 3.

ID: ZDB-IMAGE-210301-138
Publication: Xiong et al., 2021 - In vivo proteomic mapping through GFP-directed proximity-dependent biotin labelling in zebrafish
All Figures: Figures for Xiong et al., 2021


Figure Caption

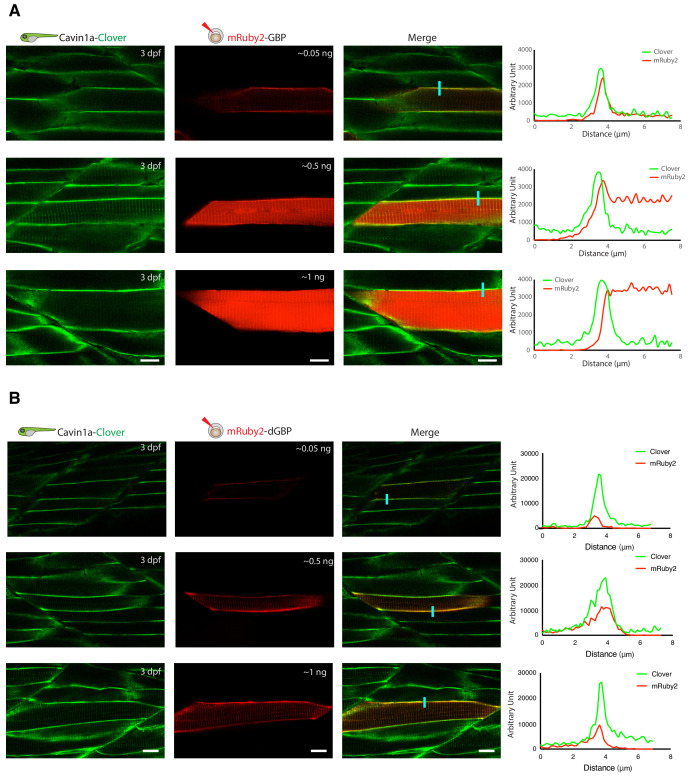

Figure 3. In vivo binding of GFP-nanobody, GBP and dGBP, in stable transgenic zebrafish embryos.

(A and B) Representative images showing the colocalisation between Cavin1a-Clover and mRuby2-GBP/dGBP in live zebrafish embryos. Cavin1a-Clover zebrafish embryos transiently expressing mRuby2-tagged GBP (A) or dGBP (B). Injected embryos were imaged at three dpf. The approximate amount of injected RNA was indicated in the mRuby2 images. Line scan (indicated by the blue line) shows the fluorescent intensity of Clover and mRuby2 across the sarcolemma of mRuby2-positive muscle cells. Scale bar denotes 10 µm in both (A) and (B).
