Fig. 8

ID: ZDB-IMAGE-210117-64
Publication: Hsu et al., 2021 - L-Carnitine ameliorates congenital myopathy in a tropomyosin 3 de novo mutation transgenic zebrafish
All Figures: Figures for Hsu et al., 2021


Figure Caption

Fig. 8

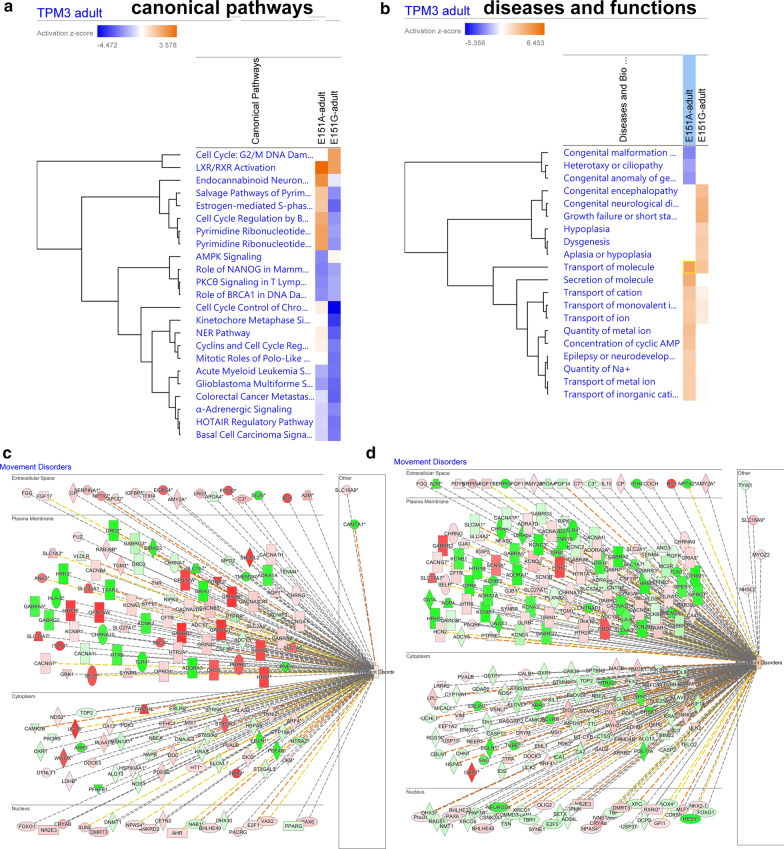

Ingenuity pathway analysis (IPA) network and canonical pathway analysis for the genes dysregulated in the TPM3(E151A) and TPM3(E151G) adult transgenic fish. a List canonical signaling pathways and metabolic pathways affected by the TPM3(E151A) and TPM3(E151G) adult by IPA analysis presented as hierarchical clustering. b List of various analytical diseases and biological functions dysregulated by TPM3(E151A) and TPM3(E151G) adult presented as hierarchical clustering. c Movement disorders is dysregulated in TPM3(E151A) adult fish presented as cellular compartment view. d Movement disorders is dysregulated in TPM3(E151G) adult fish. The genes differential expressed are shown in red or blue indicated up-regulated or downregulated respectively
