ZFIN Image: Christensen et al., 2020, Figure 2


Figure Caption

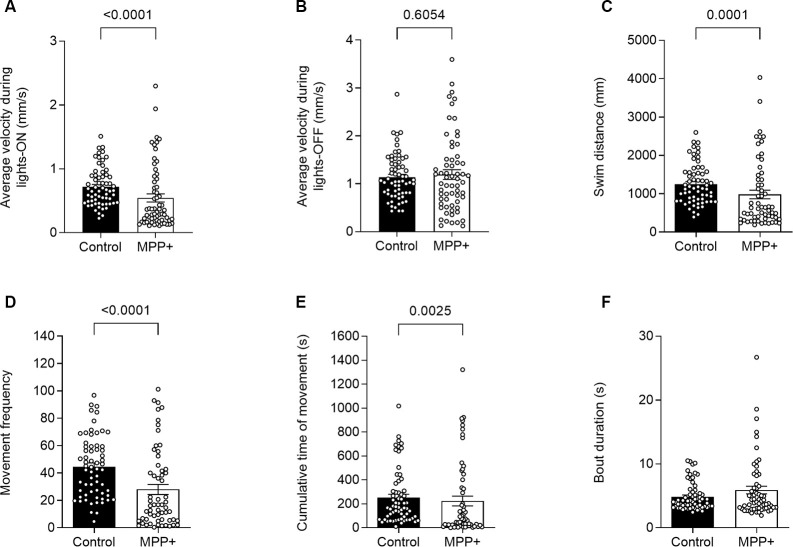

Figure 2

MPP+ effects on motor activity of zebrafish larvae. Motor activity was evaluated at 6 days post fertilization (dpf) in absence (Control) or presence of 500 μM MPP+ for (A) average velocity (mm/s) during lights-on and; (B) lights-off; (C) distance swam (mm); (D) frequency of movement; (E) cumulative time of movement (s) and (F) movement bout duration (s) were examined during five consecutive light-on phases. Data are presented as means ± SEM from two independent experiments pooled, control group n = 64, MPP+ group n = 61. Normality was tested using the D’Agostino and Pearson omnibus normality test followed by the nonparametric two-tailed Mann–Whitney U test.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front. Behav. Neurosci.
