ZFIN Image: Zhang et al., 2020, FIGURE 7


Figure Caption

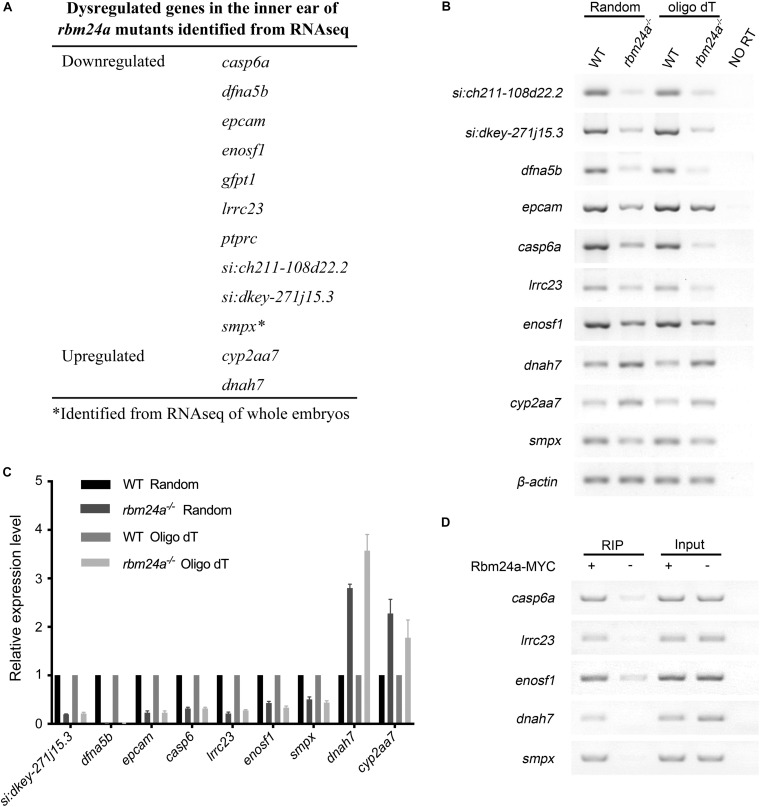

FIGURE 7

Dysregulated genes in the inner ear of rbm24a mutants. (A) Dysregulated genes in the inner ear of rbm24a mutants identified from RNAseq analysis. RT-PCR (B) and qPCR (C) were performed to confirm the RNAseq results. Random primers or oligo dT were used as primers for reverse transcription as indicated. (D) RIP experiments were performed to examine the binding of Rbm24a with its target mRNAs. Statistical analysis of the qPCR results shows that the expression difference is significant (P value < 0.000001, except that P value of cyp2aa7 is 0.001315).
