ZFIN Image: Zhang et al., 2020, FIGURE 6


Figure Caption

FIGURE 6

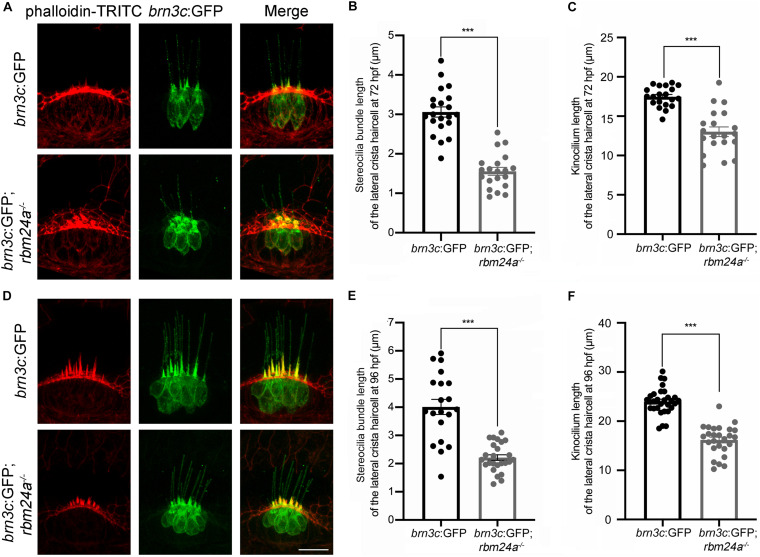

Development of lateral crista hair cells is affected in rbm24a mutants. Confocal microscopic imaging analysis of rbm24a mutant brn3c:GFP line at 72 hpf (A) and 96 hpf (D). (B,E) Stereocilia length is calculated according to the results from (A,D), respectively. (C,F) Kinocilia length is calculated according to the results from (A,D), respectively. For stereocilia length measurement at 72 hpf, brn3c:GFP, n = 21 (from 3 larvae); brn3c:GFP;rbm24a^{– /–}, n = 20 (from 4 larvae). For stereocilia length measurement at 96 hpf, brn3c:GFP, n = 20 (from 3 larvae); brn3c:GFP;rbm24a^{– /–}, n = 25 (from 4 larvae). For kinocilia length measurement at 72 hpf, brn3c:GFP, n = 20 (from 3 larvae); brn3c:GFP;rbm24a^{– /–}, n = 20 (from 4 larvae). For kinocilia length measurement at 96 hpf, brn3c:GFP, n = 30 (from 3 larvae); brn3c:GFP;rbm24a^{– /–}, n = 26 (from 3 larvae). Scale bar, 10 μm. ***p < 0.001.
