ZFIN Image: Zhang et al., 2020, FIGURE 4


Figure Caption

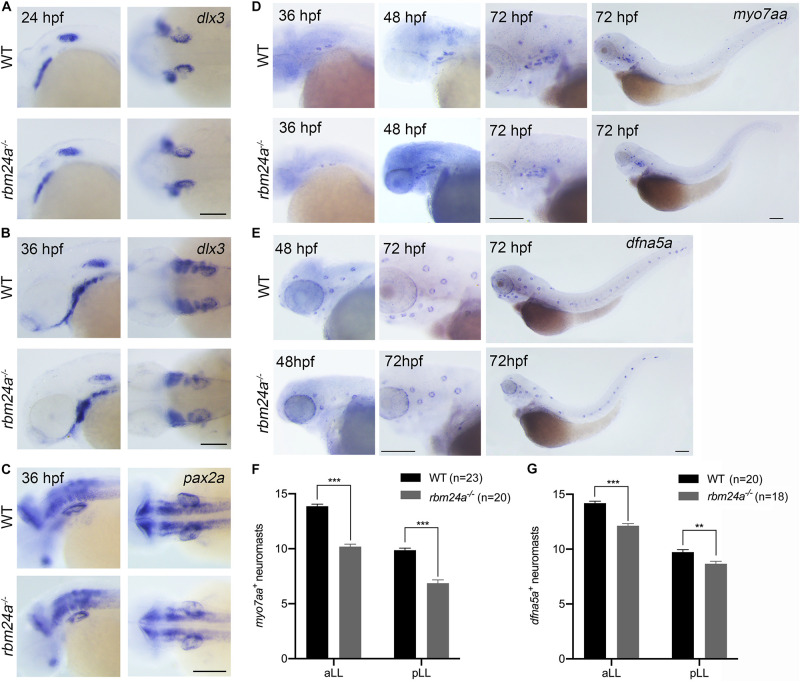

FIGURE 4

Early inner ear development is largely unaffected in rbm24a mutants. Inner ear development is examined by performing in situ hybridization of dlx3(A,B), pax2a(C), myo7aa(D), and dfna5a(E) at different developmental stages as indicated. (F) The numbers of myo7aa⁺ neuromasts are calculated according to the results from (D). (G) The numbers of dfna5a⁺ neuromasts are calculated according to the results from (E). The numbers of larvae for each group are indicated in brackets. Scale bars, 0.2 mm. **p < 0.01; ***p < 0.001.
