ZFIN Image: Domenichini et al., 2020, Fig. 4


Figure Caption

Fig. 4

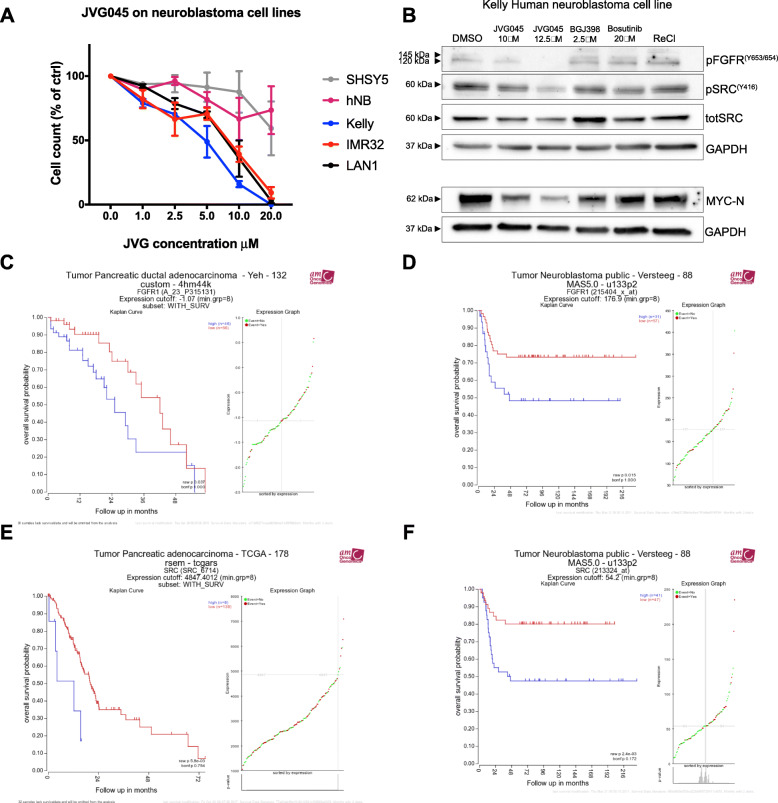

Effect of JVG045 on human neuroblastoma cell lines.a Dose response of JVG045 on human neuroblastoma cell lines. The graph shows that the tricarbonyl Rhenium compound has very little effect on cell number in those cell lines with non-amplified MYCN (SHSY5 and hNB), while it has a significant effect in MYCN-amplified cell lines (Kelly, IMR-32 and LAN-1). b Representative western blot showing the effect of JVG045 (10 μM) on the phosphorylation of FGFR1(Y653/654) and Src(Y416) compared to the FGFR inhibitor BGJ398 and the Src inhibitor Bosutinib, respectively. ReCl was used as a negative control. Data from R2: Genomics Analysis and Visualization Platform (http://r2.amc.nl) databases illustrating the prognostic value of FGFR1 and Src in Pancreatic Ductal Adenocarcinoma (PDAC) (a and e), and Neuroblastoma (d and f). Results are showed as Mean ± SEM and experiments were performed in triplicate
