Figure 6

ID: ZDB-IMAGE-201130-78
Publication: Lu et al., 2020 - Generation and Application of the Zebrafish heg1 Mutant as a Cardiovascular Disease Model
All Figures: Figures for Lu et al., 2020


Figure Caption

Figure 6

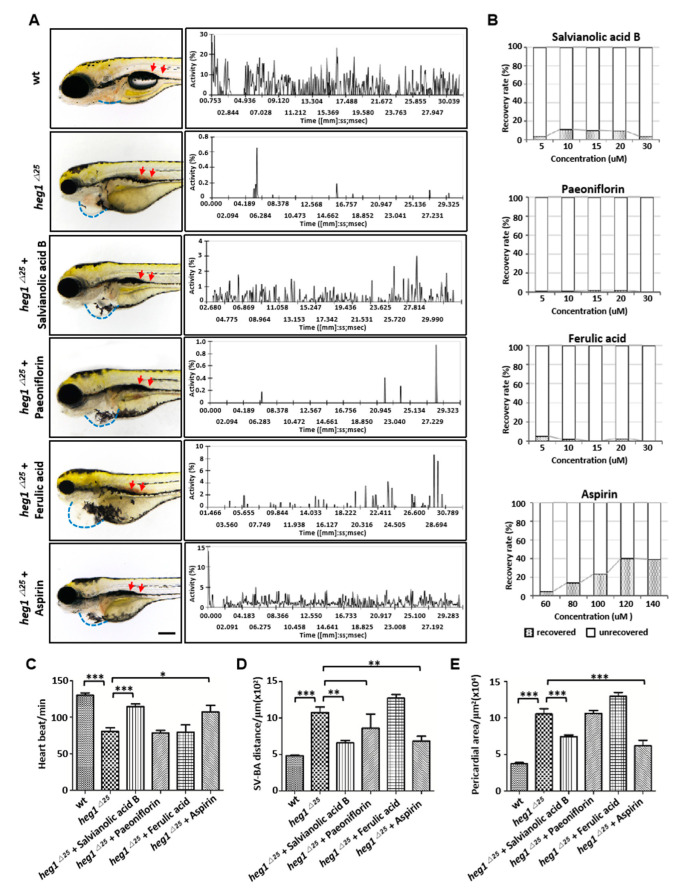

Monomers pharmacological validation of heg1^∆25 zebrafish mutants. (A) Phenotype observation and the relative movement of RBCs in PVC analysis of heg1^∆25 embryos treated with four monomers. (B) The optimal concentrations of the four monomers, salvianolic acid B, paeoniflorin, ferulic acid and aspirin. N = 40 embryos for each concentration. (C) Comparison of heart rate of zebrafish embryos in each group. (D) Comparison of SV-BA distance of zebrafish embryos in each group. (E) Comparison of pericardial area of zebrafish embryos in each group. Data are represented as mean ± SE from three independent experiments, * p < 0.05, ** p < 0.01, and *** p < 0.001 (Student’s t-test).
