Figure 7

ID: ZDB-IMAGE-201116-20
Publication: Whittle et al., 2020 - MYH3-associated distal arthrogryposis zebrafish model is normalized with para-aminoblebbistatin
All Figures: Figures for Whittle et al., 2020


Figure Caption

Figure 7 Para‐aminoblebbistatin ameliorates the <italic>smyhc1</italic><sup>R673H</sup> larval phenotype

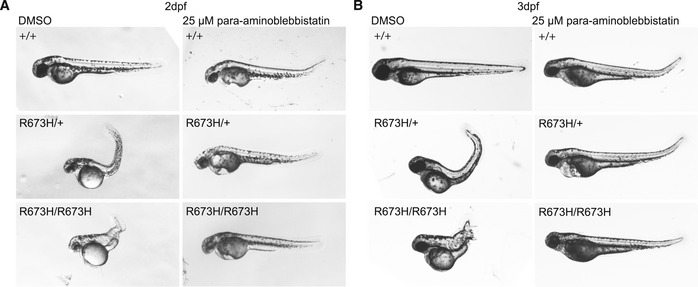

Representative morphologies of smyhc1^+/+, smyhc1^R673H/+, and smyhc1^R673H/R673H larvae at 2 dpf after 24‐h treatment with 0.25% DMSO (control) or 25 μM para‐aminoblebbistatin. All larvae treated with para‐aminoblebbistatin develop a slight dorsal tail curve and pericardial edema regardless of genotype. All para‐aminoblebbistatin‐treated smyhc1^R673H/+ (n = 9) and smyhc1^R673H/R673H (n = 3) larvae are indistinguishable from smyhc1^+/+ unlike the untreated larvae which have markedly curved or distorted body axis.

Representative images of smyhc1^+/+, smyhc1^R673H/+, and smyhc1^R673H/R673H larvae at 3 dpf after 48‐h treatment with 0.25% DMSO (control) or 25 μM para‐aminoblebbistatin. All larvae treated with para‐aminoblebbistatin develop a slight dorsal tail curve and pericardial edema regardless of genotype. Para‐aminoblebbistatin‐treated smyhc1^R673H/+ (n = 9) and smyhc1^R673H/R673H (n = 3) larvae are indistinguishable from smyhc1^+/+ unlike the untreated larvae which have markedly curved or distorted body axis.
