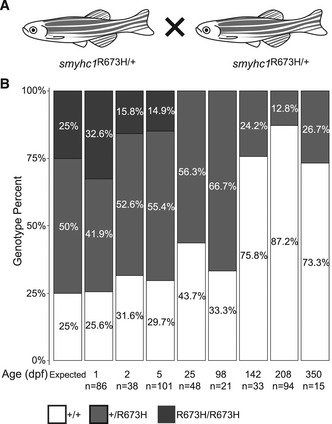

Figure 3 The <italic>smyhc1</italic><sup>R673H</sup> allele reduces survival in a dose‐dependent manner

A

Schema of in‐crosses used to generate clutches for survival assay.

B

The predicted mendelian (1:2:1) and experimental ratio of genotypes of progeny from smyhc1^R673H/+ in‐crosses demonstrates survival at the indicated ages. This ratio quickly skewed toward an overrepresentation of smyhc1^+/+ fish with no representation of smyhc1^R673H/R673H after 5 dpf. There is also dropout of smyhc1^R673H/+ fish into adulthood. Number of fish counted per group is indicated.
