Fig. 4

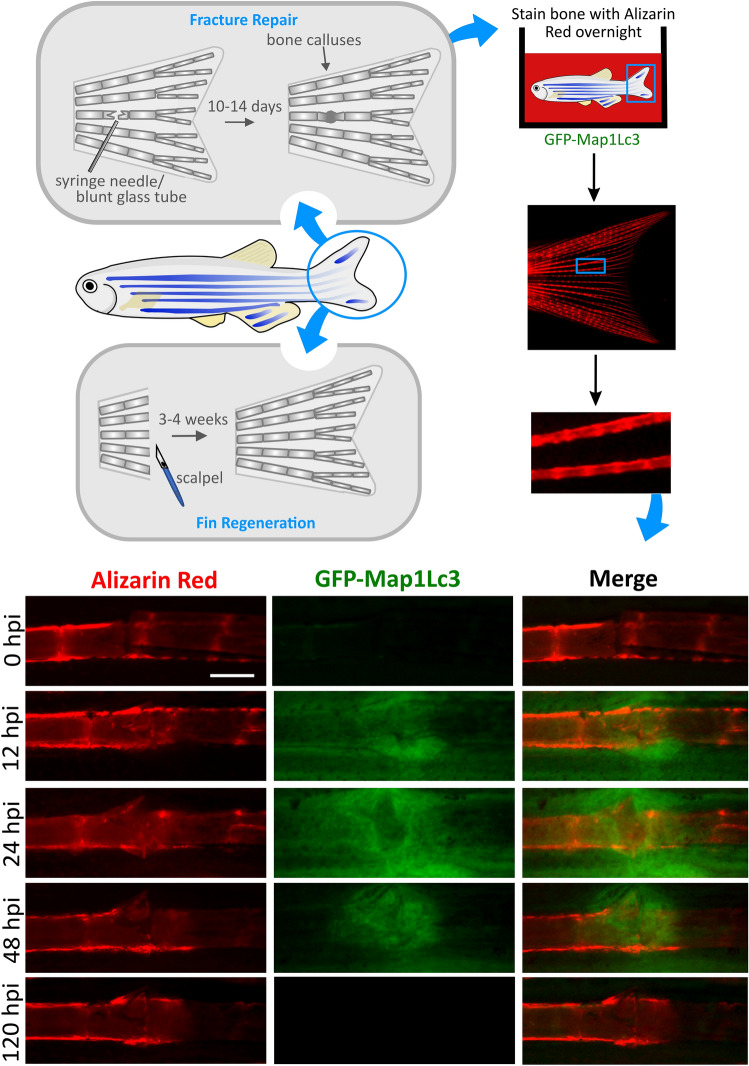

Using GFP-Map1Lc3 transgenic zebrafish line to study the role of autophagy in fin fracture repair and bone regeneration – Top, Schematics depicting how bone fracture repair and regeneration assays can be performed in zebrafish and how live staining of bone can be performed in adult zebrafish using Alizarin Red. Bottom, Fluorescent stereomicroscope images of a fracture repair assay performed in a transgenic CMV:EGFP-map1lc3b zebrafish at 6 months post fertilisation, live stained with Alizarin Red (red). Dpi days post injury; scale bar = 200 µm. Figure made in collaboration with Miss Lucy McGowan
