Figure Caption

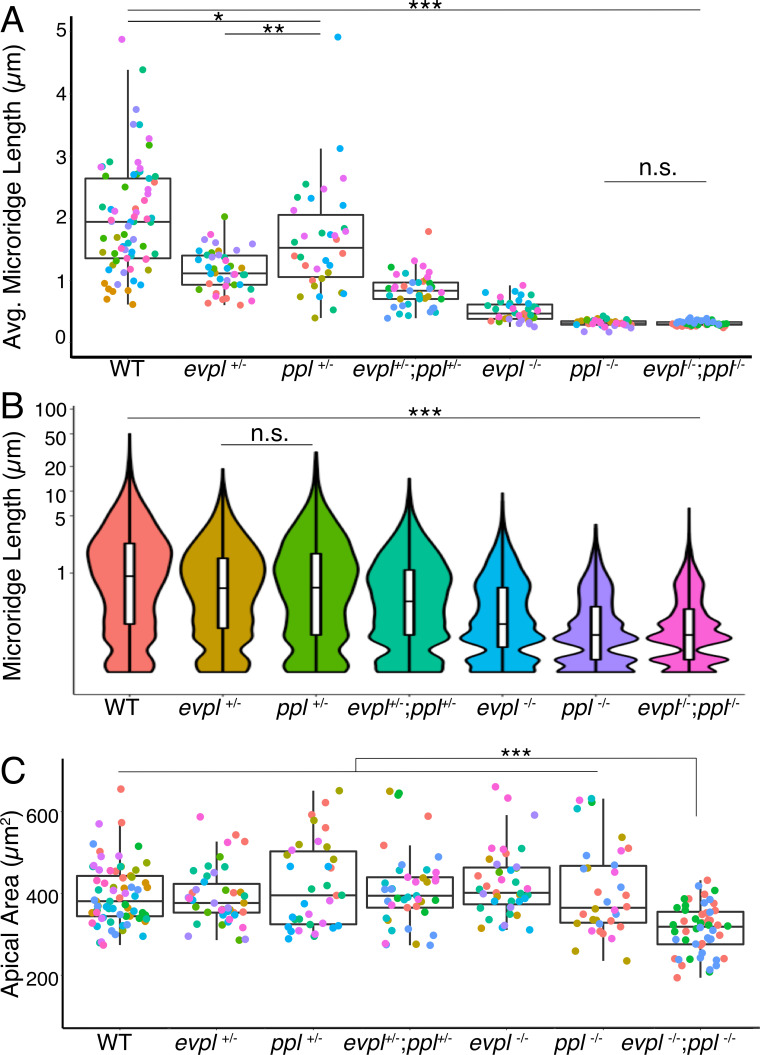

Figure 4—figure supplement 2. Additional quantification of microridge length and cell area in <italic>evpl</italic> and <italic>ppl</italic> mutants.

(A) Dot and box-and-whisker plot of average microridge length per cell of the indicated genotypes, at 48hpf. Same data as in Figure 4B but with colors representing cells from different animals. *p<0.05, **p<0.01, and ***p<0.0001, the Wilcoxon rank-sum test. (B) Box-and-whisker and violin plot of microridge length, pooled from all measured cells, of the indicated genotypes. ***p<0.0001, the Wilcoxon rank-sum test. (C) Dot and box-and-whisker plot of apical cell areas at 48hpf from animals of indicated genotypes. Colors represent cells from different animals. n = 27–69 cells from 3 to 9 fish per genotype. ***p<0.0001, the Wilcoxon rank-sum test. Box-and-whisker plots: Middle line shows the median; the upper and lower ends of the box are the 75th and 25th percentiles. Exact P values for all comparisons are shown in Supplementary file 1.
