Figure 7

ID: ZDB-IMAGE-201003-37
Publication: Converse et al., 2020 - The zinc transporter ZIP9 (Slc39a9) regulates zinc dynamics essential to egg activation in zebrafish
All Figures: Figures for Converse et al., 2020


Figure Caption

Figure 7

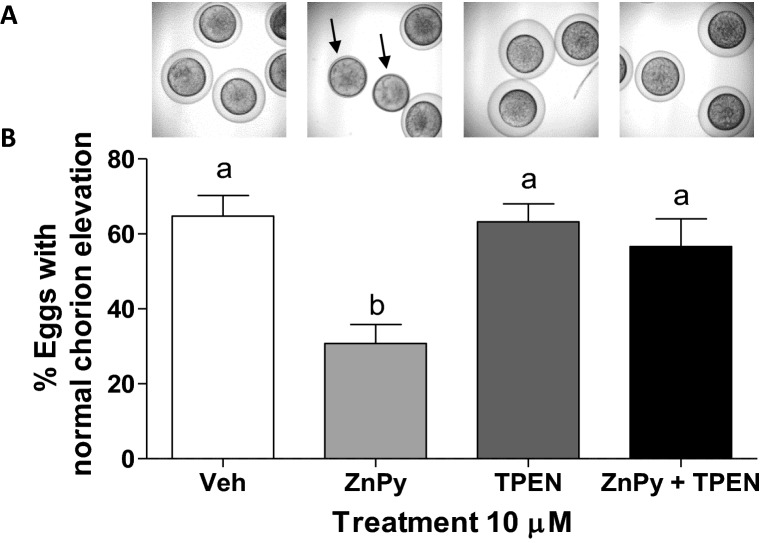

Effect of sustained zinc elevation on chorion elevation. (A) Representative micrographs of the effects of pre-treatment with zinc pyrithione (ZnPy) and TPEN on meiosis II-arrested eggs 10 min post-activation. (B) Quantification of ZnPy and TPEN-treated eggs that underwent chorion elevation post-activation. All data represents means ± SEM; n = 9–12. Each treatment was repeated in triplicate with similar results obtained for each, and the experiment was repeated with 3–4 fish. Significance was determined by one-way ANOVA with Bonferroni multiple comparison post-test. Different letters indicate significant differences between treatment groups in the post hoc test (P < 0.05).
