Figure 4

ID: ZDB-IMAGE-201003-253
Publication: Wisniewski et al., 2020 - P130Cas/bcar1 mediates zebrafish caudal vein plexus angiogenesis
All Figures: Figures for Wisniewski et al., 2020


Figure Caption

Figure 4

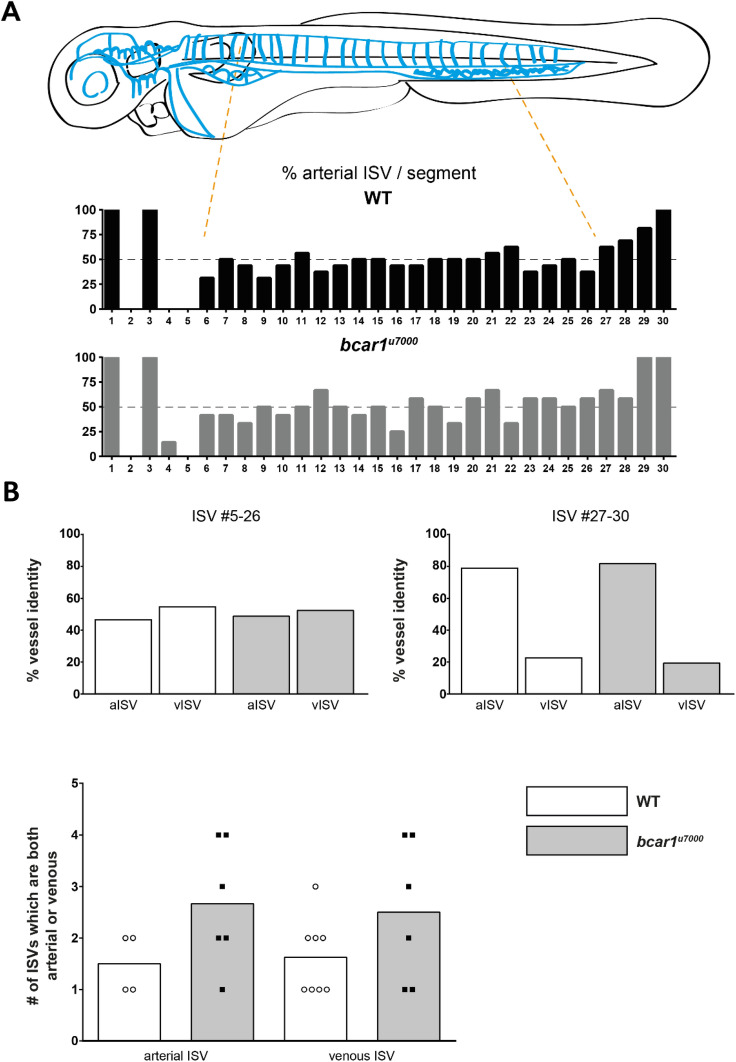

P130Cas is not required for venous intersegmental vessel formation at 72hpf. (A) Illustration showing the vasculature of the trunk in a stylised embryo, with bright blue symbolising arteries and dark blue veins. Bar graphs showing the percentage of ISVs which were arterial for wildtype (black) and bcar1^u7000 (grey), from anterior to posterior. (B) Quantification of vessel identity for ISV pairs 5–26 ( left) or the last, more arterial, pairs 27–30 (right) did not show differences. A non-significant increase in the number of ISVs where both vessels were arterial or venous (bottom graph) was observed. White boxes indicate wildtype, grey boxes bcar1^u7000.
