Figure 1.

ID

ZDB-IMAGE-200829-65

Genes

tmem216

Publication

Liu et al., 2020 - TMEM216 Deletion Causes Mislocalization of Cone Opsin and Rhodopsin and Photoreceptor Degeneration in Zebrafish

All Figures

Figures for Liu et al., 2020


Figure Caption

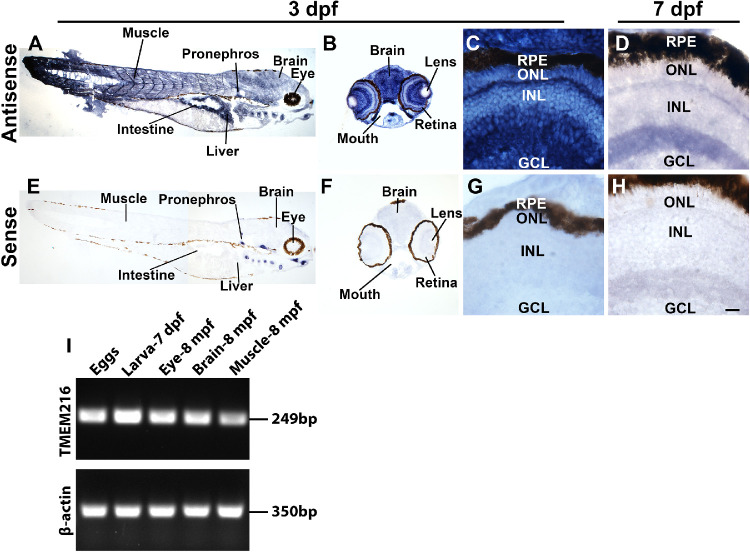

Figure 1.

tmem216 was widely expressed in zebrafish. In situ hybridization with tmem216 sense and antisense probes was performed on cryosections of 3- and 7-dpf zebrafish larvae. (A) Antisense probe labeling of longitudinal sections of a 3-dpf larva. tmem216 was widely expressed throughout the zebrafish, including the muscle, pronephros, brain, intestine, and liver. (B, C) Antisense probe labeling of 3-dpf zebrafish head. tmem216 was widely expressed throughout the brain and neural retina. (D) Antisense probe labeling of 7-dpf zebrafish retina. tmem216 expression persisted throughout the neural retina at 7-dpf. (E–H) Sense probe labeling of 3- and 7-dpf zebrafish cryosections. (I) RT-PCR of wildtype fish showing TMEM216 expression in newly fertilized eggs, 7-dpf larva, and 8-mpf eye, brain, and skeletal muscle. Scale bar in H: 200 µm for A, B, E, and F; 15.5 µm for C, D, G, and H.

Figure Data

Expression / Labeling details
