Fig 6

ID
ZDB-IMAGE-200822-9
Publication
Smith et al., 2020 - De novo phosphoinositide synthesis in zebrafish is required for triad formation but not essential for myogenesis
All Figures
Figures for Smith et al., 2020
Figure Caption

Fig 6 Localization of PIPs by immunoelectron microscopy in wildtype and <italic>cdipt</italic> mutant zebrafish.

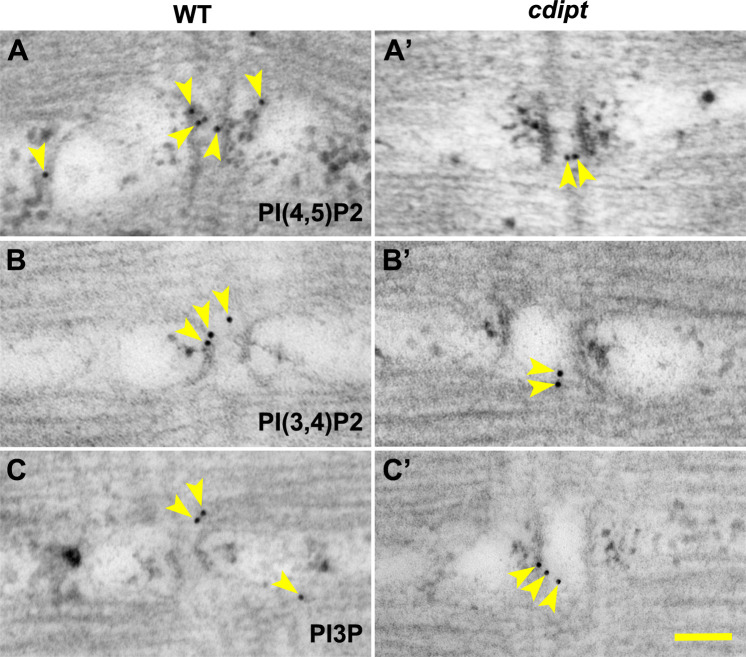

Transmission immunoelectron micrographs showing localization of nanogold-labelled antibodies against (A, A’) PI(4,5)P2, (B, B’) PI(3,4)P2 and PI3P (C, C’) (yellow arrowheads) at the skeletal muscle triad. There is no difference in localization of these antibodies between WT and cdipt mutant embryos. Scale bar = 100nm.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
