Figure 5

ID: ZDB-IMAGE-200814-29
Publication: Peperstraete et al., 2020 - Enhancement of Breast Cancer Cell Aggressiveness by lncRNA H19 and its Mir-675 Derivative: Insight into Shared and Different Actions
All Figures: Figures for Peperstraete et al., 2020


Figure Caption

Figure 5

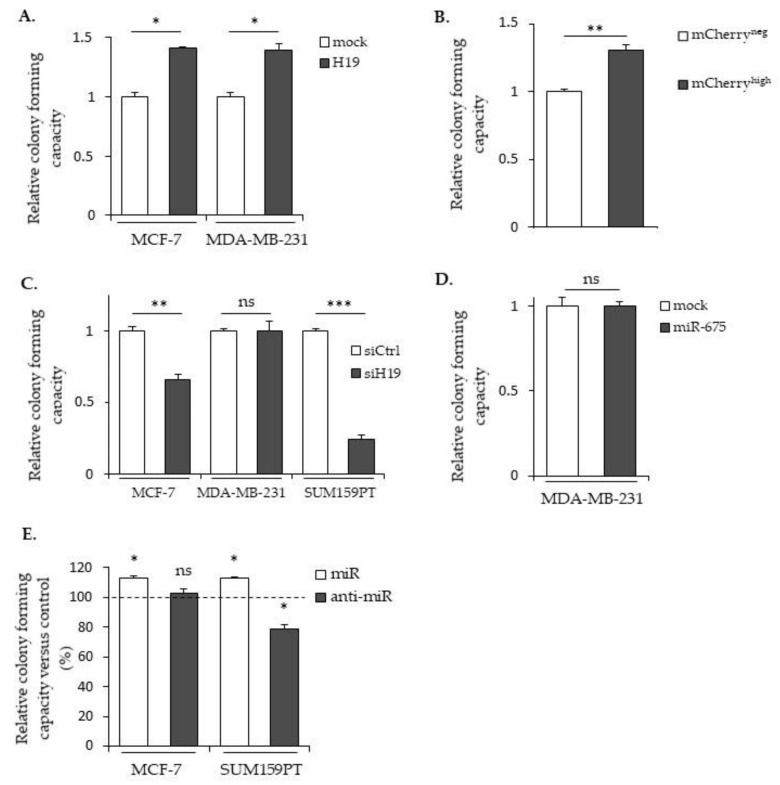

Effects of H19 and miR-675 in colony formations. (A) The clonogenic capacities of the control (mock) or H19-overexpressing cells (H19). (B) The relative clonogenic capacities of SUM159PT-pH19-mCherry^neg versus SUM159PT-pH19-mCherry^high. (C) The clonogenic capacities of the control (siCtrl) and H19-knockdown cells (siH19). (D) The clonogenic capacities of the MDA-MB-231 control (mock) or miR-675-overexpressing cells (miR-675). (E) The clonogenic capacities of the miR-675-transfected cells (miR) or miR-675-specific inhibitor transfected cells (anti-miR). Results are presented as a percentage of the control. * p < 0.05; ** p < 0.01; *** p < 0.001; ns: not significant.
