Figure 2

ID: ZDB-IMAGE-200805-3
Publication: Godoy et al., 2020 - Dopaminergic neurons regenerate following chemogenetic ablation in the olfactory bulb of adult Zebrafish (Danio rerio)
All Figures: Figures for Godoy et al., 2020


Figure Caption

Figure 2

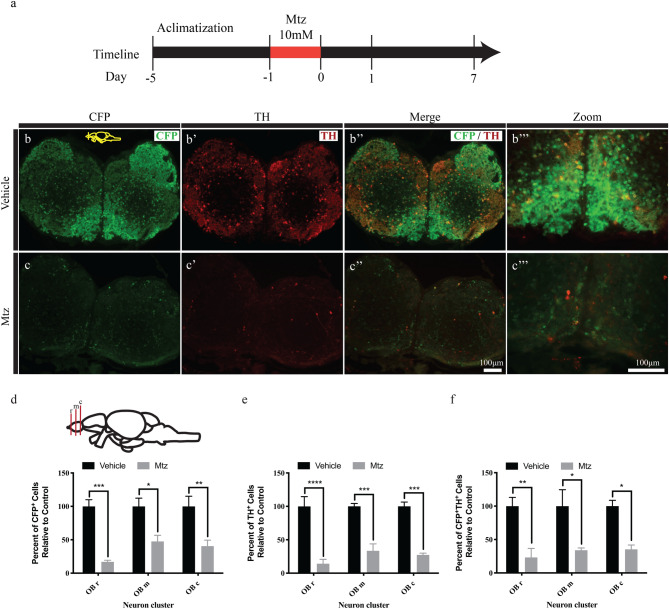

Ablation of DA neurons following Mtz treatment. (a) Timeline of experiment. (b–b‴) Representative immunofluorescence of CFP positive (Green) and TH positive (Red) cells in the OB of vehicle control fish. (b–b‴). Ablation of CFP (Green) and TH (Red) positive cells in the OB of Mtz-treated fish (c–c‴). (d–f) Quantification of the number of CFP⁺ (d), TH⁺ (e), and CFP + /TH + cells expressing CFP and TH (f). Quantification was conducted in 3 areas of OB, a rostral (OBr), a medial (OBm) and a more caudal (OBc) area. *(p ≤ 0.05), **(p ≤ 0.01), ***(p ≤ 0.001) and ****(p ≤ 0.0001).
