ZFIN Image: Rassier et al., 2020, Figure 7


Figure Caption

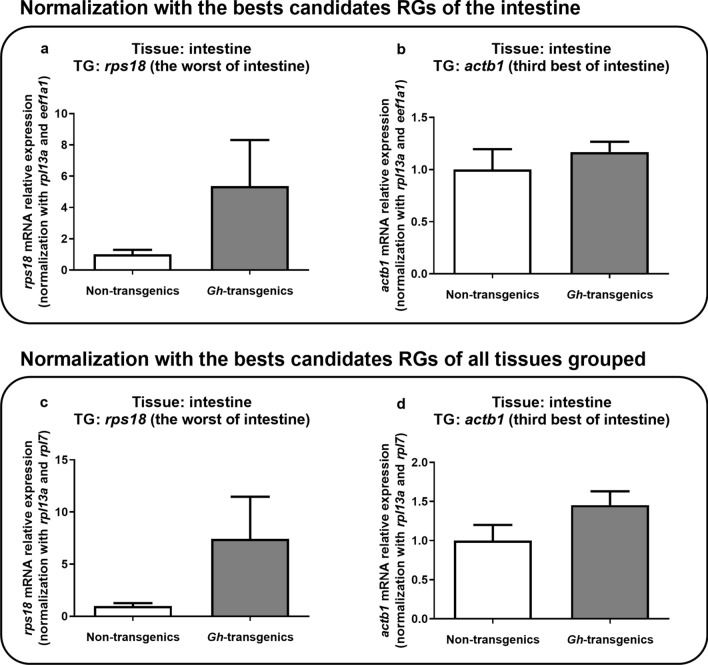

Figure 7

Verification of the suitability of the reaction when normalized with the candidate reference genes ranked as the best for intestine tissue (a,b) and for all tissues grouped (c,d), using intestine gene expression results. As target genes, it was chosen the worst (a) and the third best (b) for intestine. In all the graphics, the Y-axis represents mRNA relative expression, and X-axis indicates the experimental group: non-transgenic and gh-transgenic zebrafish of F0104 lineage. Data are expressed as mean ± standard error of the mean. Asterisk indicate significant difference mean values between groups (n = 7; p < 0.05).
