ZFIN Image: Osman et al., 2020, Fig 3


Figure Caption

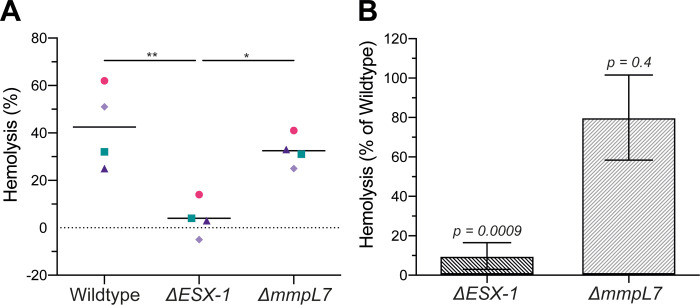

Fig 3 PDIM-deficient <italic>M</italic>. <italic>marinum</italic> retain hemolytic activity.

(A) 2-hour hemolysis of sheep red blood cells following incubation with wildtype, ΔESX-1 and ΔmmpL7 M. marinum relative to a Triton X-100 control. Statistical significance was determined by one-way ANOVA with Tukey's post-test. *p < 0.05, ** p < 0.01, otherwise, p > 0.05. Symbols represent matching experimental replicates. Pink circles, green squares, dark purple triangles and light purple diamonds are the first, second, third, and fourth replicates, respectively. (B) ΔESX-1 and ΔmmpL7 M. marinum hemolysis from (A) normalized to wildtype for each of four experiments. p-values, one-sample t-test against a hypothetical mean of 100% Error bars, mean +/- S.E.M.
