Figure 3

ID: ZDB-IMAGE-200725-23
Source: Figures for Toms et al., 2020


Figure Caption

Figure 3

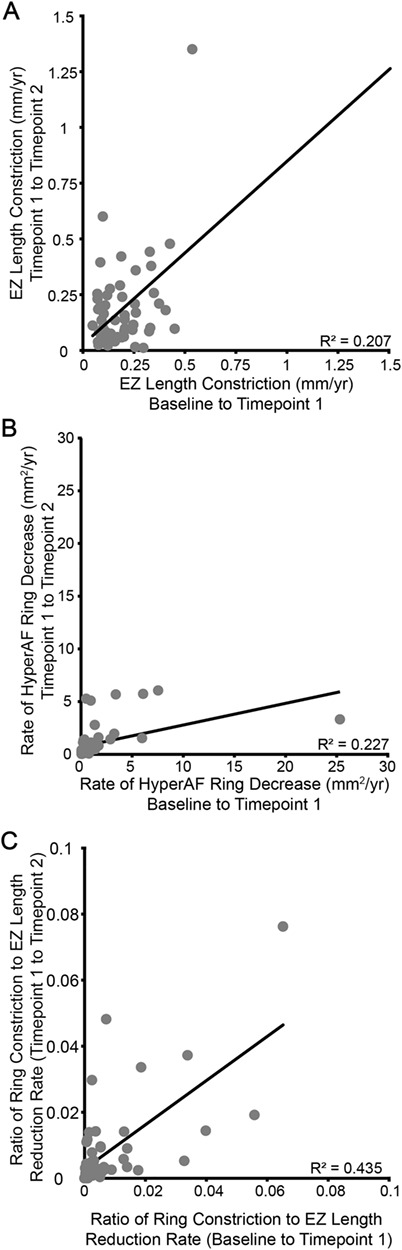

Inter-relatedness of progression between metrics. While there is a strong correlation between the rate of change observed in the first and second observation periods for both EZ length constriction (A) and hyperautofluorescence (hyperAF) ring constriction (B), neither correlation line describes the data well (r² = 0.207 and 0.227 respectively). The ratio of EZ length and hyperAF ring constriction accounts for a much greater share of the variability (C, r² = 0.4355).
