Figure 3

ID: ZDB-IMAGE-200713-22
Publication: Coomer et al., 2020 - Her9/Hes4 is required for retinal photoreceptor development, maintenance, and survival
All Figures: Figures for Coomer et al., 2020


Figure Caption

Figure 3

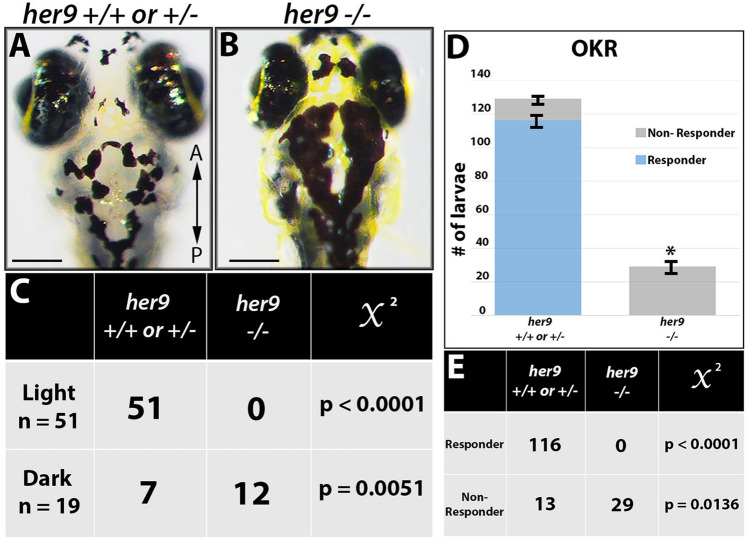

Her9 mutants lack a VBA response and display abnormal visual behavior (OKR). (A,B) Images displaying her9 mutant with significantly darker pigmentation at 5 dpf. (C) Genotyping of the “dark” and “light” larvae revealed that out of 51 individuals classified as “light”, zero were her9^−/− (p value < 0.0001, χ² analysis). Conversely, 12 out of 19 individuals classified as “dark” were her9^-−/− (p value = 0.0051). (D) Number of responders and non-responders in the optokinetic response (OKR) assay. (E) Genotyping after OKR revealed that zero of the her9^−/− embryos displayed saccades in the OKR (p < 0.0001). Scale bar = 50 µm.
