Fig. 9.

ID: ZDB-IMAGE-200703-34
Publication: Sam et al., 2020 - Specificity, redundancy and dosage thresholds among gata4/5/6 genes during zebrafish cardiogenesis
All Figures: Figures for Sam et al., 2020


Figure Caption

Fig. 9.

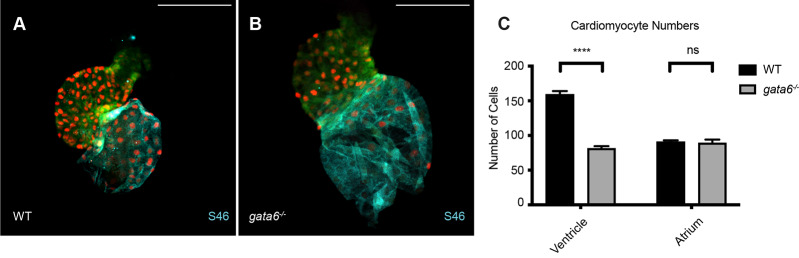

Gata6 regulates the number of ventricular cardiomyocytes. Shown are representative images of sibling wild-type (WT) (A) and gata6 null hearts (B) at 2 dpf derived from crossing Tg(myl7:gfp; myl7:dsREDnuc); gata6+/- adults and stained with S46 antibody to distinguish the atrium (blue). Scale bars: 0.1 mm. (C) Quantification of cardiomyocytes in each chamber shows a significant loss of ventricular cardiomyocytes in gata6 homozygous mutants (N=7 per genotype, t-test, P<0.0001, bars shown are s.e.m.). The number of atrial cells in the mutant remains unaffected compared to sibling controls, even though the atrial area is expanded.

Figure Data

Phenotype details
