Fig 4

ID

ZDB-IMAGE-200702-27

Genes

Publication

Blanco-Sánchez et al., 2020 - yippee like 3 (ypel3) is a novel gene required for myelinating and perineurial glia development

All Figures

Figures for Blanco-Sánchez et al., 2020


Figure Caption

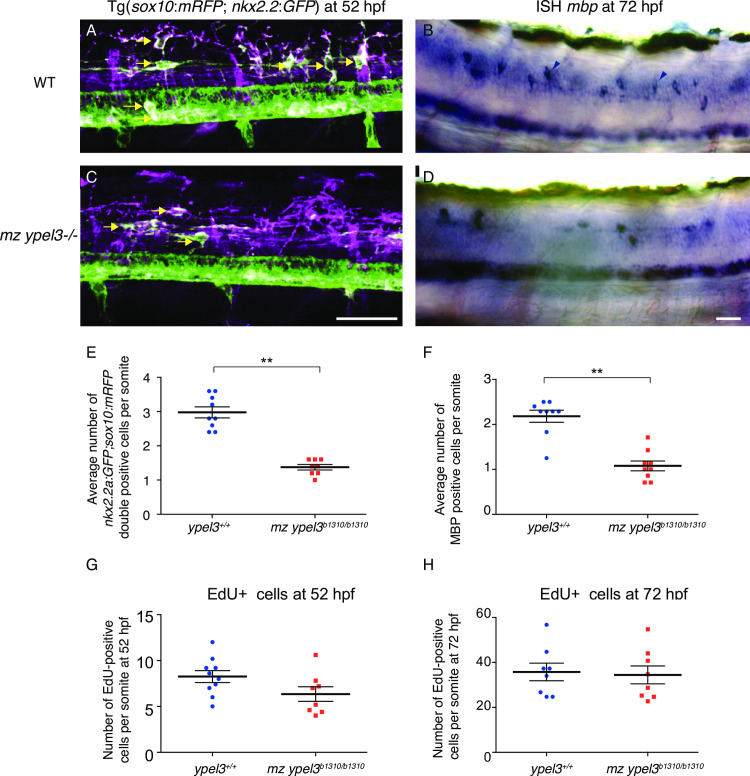

Fig 4 <italic>ypel3</italic> is required for myelinating oligodendrocyte development.

(A-B) WT larvae at 52 hpf (A) and at 72 hpf (B). (C-D) mz ypel3 mutants at 52 hpf (C) and at 72 hpf (D). Arrows indicate myelinating oligodendrocytes (double mRFP, mGFP positive cells) in (A) and (C). Black arrowheads show myelinating oligodendrocytes expressing mbpb in (B and D). Scale bars: 25 μm. Images are lateral views. (E-H) Quantification of the number of myelinating oligodendrocytes at 52 hpf (E), mbpb expressing cells at 72 hpf (F), EdU positive cells at 52 hpf (G) and 72 hpf (H). Bars represent +/- SEM.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Genet.
