Fig. 2

ID: ZDB-IMAGE-200619-31
Publication: Loh et al., 2020 - RSPO3 impacts body fat distribution and regulates adipose cell biology in vitro
All Figures: Figures for Loh et al., 2020


Figure Caption

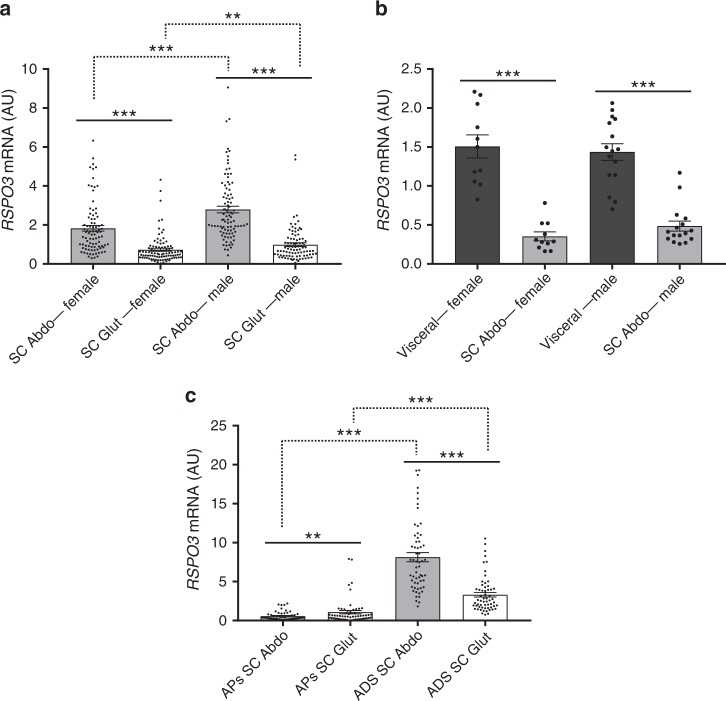

Fig. 2 <italic>RSPO3</italic> expression in human abdominal and gluteal whole AT and AT fractions.

Normalised RSPO3 mRNA levels in: a paired SC abdominal (Abdo) versus gluteal (Glut) fat biopsies from healthy women (n = 103) and men (n = 97), b paired visceral versus SC abdominal AT from 11 women and 16 men, and c fractionated AT [cultured APs and isolated mature adipocytes (ADS)] from 59 women. Histogram data are means ± s.e.m. **p < 0.01, ***p < 0.001, statistical significance was assessed by univariate analyses adjusted for age and BMI, and with Bonferroni correction for multiple testing for a, and by two-tailed paired Student’s t-tests for b and c. Source data are provided as a Source Data file.
