ZFIN Image: Budine et al., 2020, Fig. 6


Figure Caption

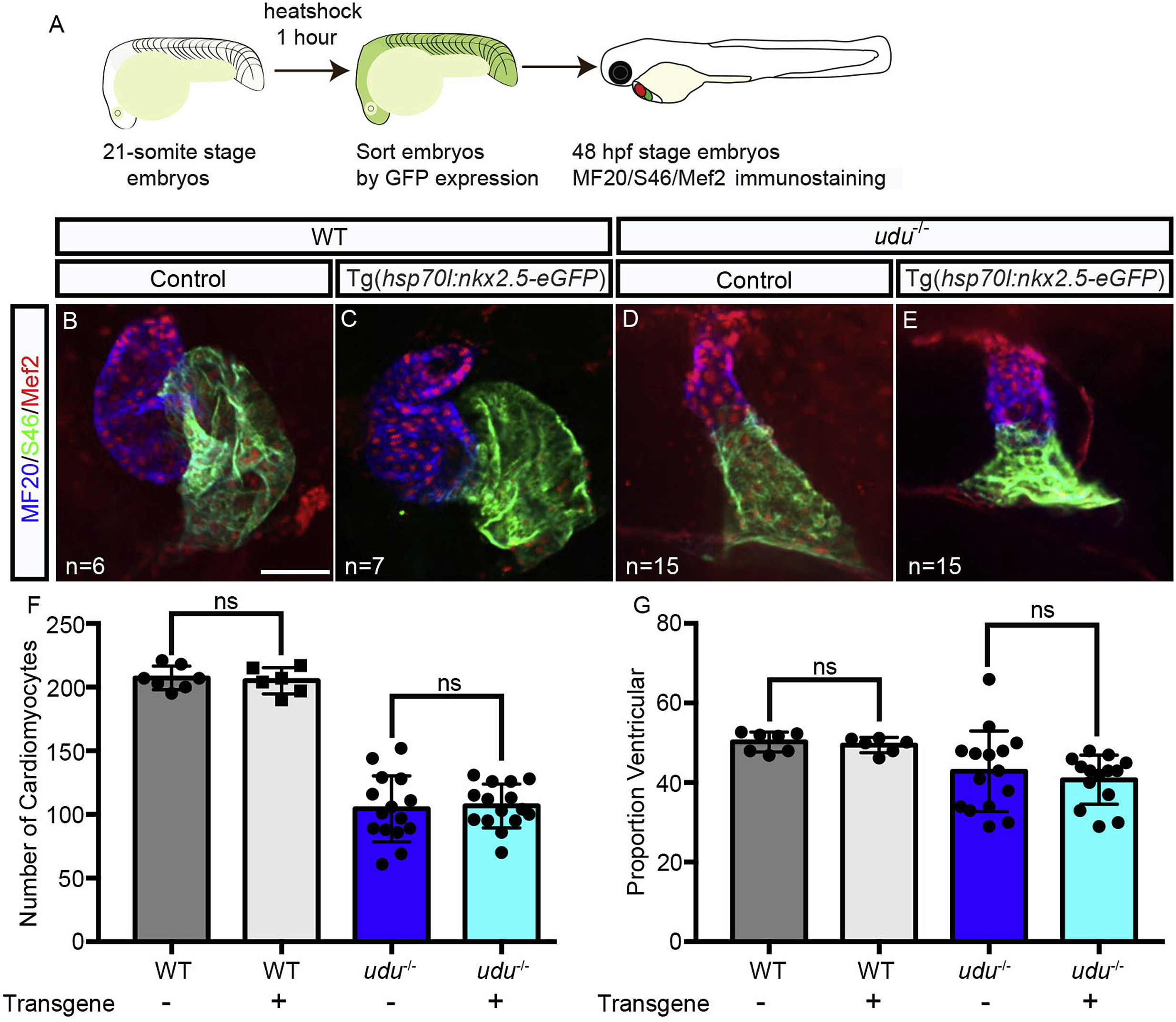

Fig. 6 Ectopic nkx2.5 expression is not sufficient to rescue ventricular identity in udu−/− embryos. Experimental workflow (A). Immunofluorescent labeling with S46 (green) labeling the atrium, MF20 (blue) labeling the myocardium and Mef2 (red) labeling the cardiomyocyte nuclei in 48 hpf WT embryos (B, C) and udu−/− embryos without Tg(hsp70l:nkx2.5-eGFP) (B, D) and those harboring Tg(hsp70l:nkx2.5-eGFP) (C, E). Graphs showing the total number of cardiomyocytes (F), and a proportion of ventricular cardiomyocytes (G) in WT (grey) and udu−/− (blue) embryos with (light grey, light blue) and without Tg(hsp70l:nkx2.5-eGFP) (dark grey, dark blue). ∗p < 0.05, ∗∗p < 0.01, ∗∗∗p < 0.001, ∗∗∗∗p < 0.0001, error bars = SEM. Scale bar represents 50 μm.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 462(2), Budine, T.E., de Sena-Tomás, C., Williams, M.L.K., Sepich, D.S., Targoff, K.L., Solnica-Kreze, L., Gon4l/Udu Regulates Cardiomyocyte Proliferation and Maintenance of Ventricular Chamber Identity During Zebrafish Development, 223-234, Copyright (2020) with permission from Elsevier. Full text @ Dev. Biol.
