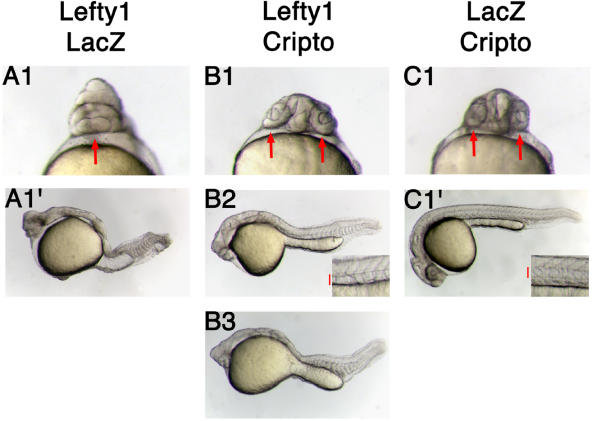

Figure 2 EGF-CFC Coreceptors Genetically Interact with Lefty

Live wild-type zebrafish embryos at 30 h postfertilization (hpf).

(A1, B1, and C1) Ventral views of the head.

(A1′, B2, B3, and C1′) Lateral views, with anterior to the left, dorsal up.

(A1, A1′, B1, B2, and B3) Wild-type embryos were injected with 20 pg of lefty1 mRNA. Embryos were further double-injected with either 200 pg of LacZ mRNA (A1 and A1′) or 200 pg of Cripto mRNA (B1, B2, and B3).

(C1 and C1′) Wild-type embryos injected with 200 pg of Cripto mRNA and 20 pg of LacZ mRNA.

Misexpression of Lefty1 results in cyclopia and other head and trunk mesoderm defects ([A1 and A1′] 32 of 32 embryos had the phenotype shown; arrow shows cyclopia). Coexpression of Cripto with Lefty in embryos leads to rescue of two eyes ([B1] four of 50; arrows show two eyes), notochord ([B2] 20 of 50; inset shows trunk somites and notochord, red bar delineates notochord), and trunk somites ([B3] 50 of 50). Embryos injected with Cripto mRNA only show normal wild-type phenotype ([C1 and C1′] 30 of 30; arrow in [C1] shows two normal eyes, and inset in [C1′] shows normal notochord and trunk somites, red bar delineates notochord).
