Fig. 7

ID

ZDB-IMAGE-200523-27

Genes

fxyd11

Antibodies

Publication

Saito et al., 2010 - Identification of zebrafish Fxyd11a protein that is highly expressed in ion-transporting epithelium of the gill and skin and its possible role in ion homeostasis

All Figures

Figures for Saito et al., 2010


Figure Caption

Fig. 7

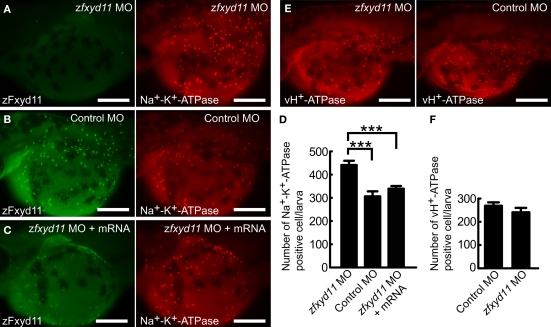

Effects of zFxyd11 knockdown. (A–C) Immunofluorescence staining was performed on zfxyd11-MO-injected (A), control-MO-injected (B), and zfxyd11-MO with zfxyd11a mRNA-injected larvae (C) with anti-zFxyd11 antiserum (green), along with anti–Na⁺–K⁺-ATPase antiserum (red). No signal for zFxyd11 was detected in zfxyd11 morphants (A). (D) The number of Na⁺–K⁺-ATPase–positive cells in the skin was counted and is represented as the mean ± SEM. Significant differences were evaluated by one-way ANOVA, Tukey's multiple comparison test (***p < 0.001, n = 7). (E) Immunofluorescence staining was performed on zfxyd11-MO-injected (left panel), control-MO-injected larvae (right panel) with anti–vH⁺-ATPase antiserum. (F) The number of vH⁺-ATPase–positive cells in the skin was counted and is represented as the mean ± SEM. The number of vH⁺-ATPase-positive cells was not affected by zFxyd11 knockdown (n = 7).

Figure Data

Expression / Labeling details

Phenotype details
