ZFIN Image: Liu et al., 2020, Figure 2-S3


Figure Caption

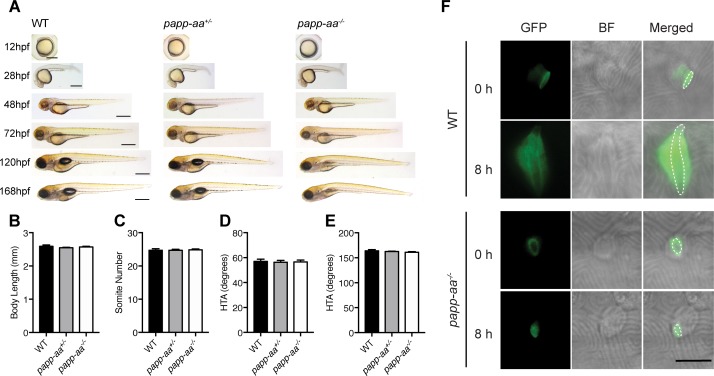

Figure 2-S3 Global and local effects of genetic deletion of <italic>papp-aa.</italic>

(A) Gross morphology of wild-type (WT), papp-aa^+/-, and papp-aa^-/- fish at the indicated stages. Lateral views with anterior to the left. Scale bar = 0.5 mm. (B–E) Body length (B), somite number (C), and head-trunk angle (D) were measured at 24 hpf and head-trunk angle (E) at three dpf. Data shown are means ± SEM. n = 6 ~ 24 fish/group. No statistical significance was found using one-way ANOVA followed by Tukey’s multiple comparison test. (F) Fish of the indicated genotypes were raised in E3 medium to three dpf. NaR cells were imaged before and 8 hr after the low [Ca²⁺] treatment. The apical opening was marked by dotted lines. Scale bar = 10 µm.

Figure 2—figure supplement 3—source data 1.Excel spreadsheet containing quantitative data for <xref rid='fig2s3' ref-type='fig'>Figure 2—figure supplement 3</xref>.
