Figure 7

ID
ZDB-IMAGE-200430-18
Source
Figures for Paudel et al., 2020
Figure Caption

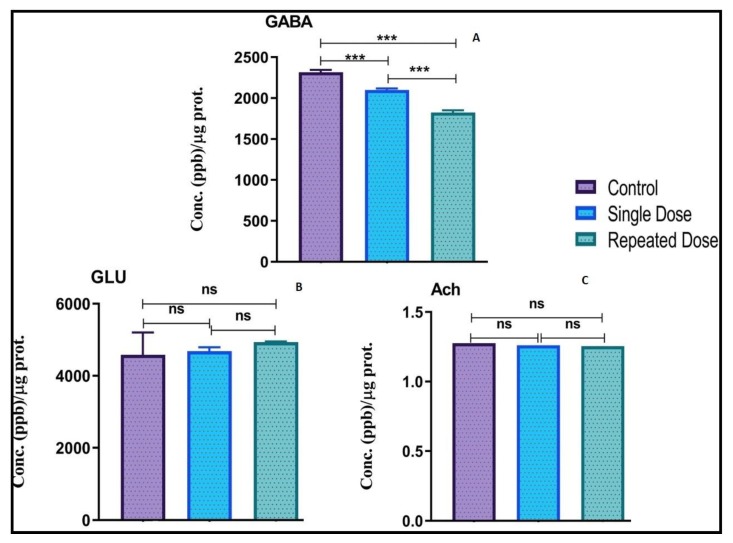

Figure 7

Modulation of Neurotransmitters levels in the normal and epileptic group. Neurotransmitters analysis in zebrafish brain after 10 days of pilocarpine treatment. GABA (A), Glutamate (GLU) (B), and Acetylcholine (Ach) (C) levels were estimated in the zebrafish brain using LC-MS/MS. Data are represented as mean ± SEM, n = 6 and statistically analyzed by one-way ANOVA followed by Sidak’s multiple comparison test *p < 0.05, **p < 0.01, and ***p < 0.001.
