Fig. 5

ID: ZDB-IMAGE-200424-35
Publication: Olender et al., 2020 - A unified nomenclature for vertebrate olfactory receptors
All Figures: Figures for Olender et al., 2020


Figure Caption

Fig. 5

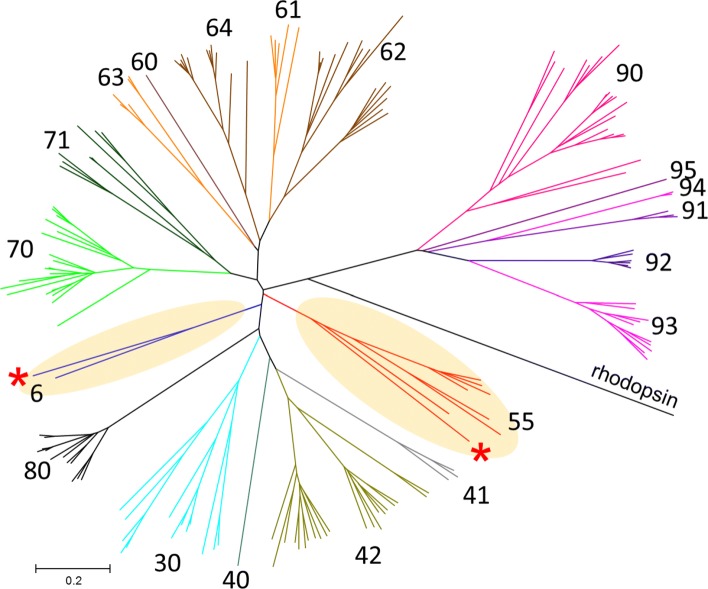

Phylogenetic analysis of zebrafish ORs. A neighbor-joining tree of all zebrafish OR genes and pseudogenes with up to 2 frame-disruptions, mouse OR representatives from families 55 and 6 (the mouse Or55b3 and Or6c75, indicated by red asterisks) and the bovine rhodopsin sequence as an outgroup. The tree is color-coded by the OR family classification where the OR family numbers are indicated next to the corresponding evolutionary branch (see Additional file 3: Table S2 for the relationship between family numbers and classes). All OR families’ main branches are supported by bootstrap values > 90, except for OR family 60 and 40 as their location within the class clade was less certain (bootstrap values of 31 and 77, respectively). The 2 OR families that are shared with mammals are highlighted in yellow
