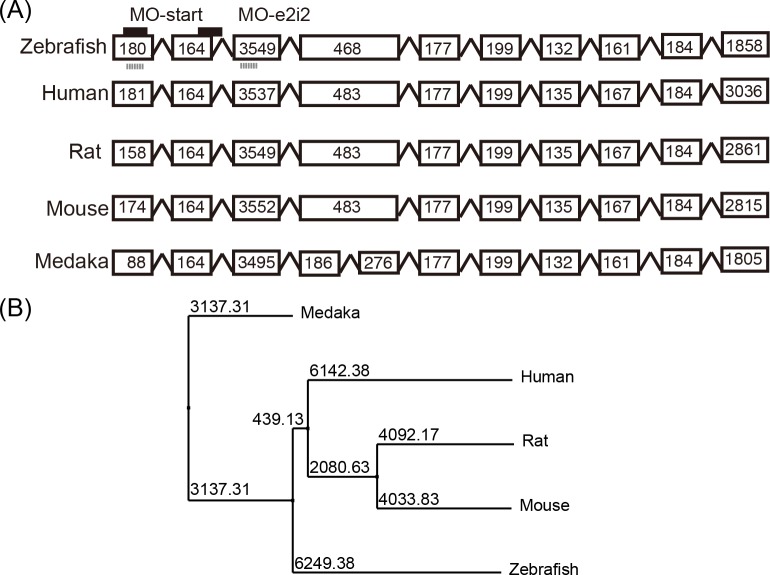

Fig 1 The genome structure and protein sequence of zebrafish <italic>cspg4</italic> are similar to other vertebrates.

(A) The genome structure of cspg4 in zebrafish (ENSDART00000112782) compared to human (ENST00000308508), rat (ENSRNOT00000023326.3), mouse (ENSMUST00000035661) and medaka (ENSORLT00000002266.1). Scheme demonstrates the target sites of splicing (MO-e2i2) and translational blocking (MO-start) morpholino (black line) in zebrafish. Gray lines indicate primer pairs used to evaluate pre-mRNA processing. (B) The protein sequence of Cspg4 among zebrafish (UniProt # E7FCN9), rat (UniProt # F1LS79), human (UniProt # Q6UVK1), mouse (UniProt # Q8VHY0) and medaka (UniProt # H2L8T3) were analyzed by Jalview2 software with PAM250 matrix and the Neighbour Joining method [37].
