Fig 4

ID: ZDB-IMAGE-200316-18
Publication: Weuring et al., 2020 - NaV1.1 and NaV1.6 selective compounds reduce the behavior phenotype and epileptiform activity in a novel zebrafish model for Dravet Syndrome
All Figures: Figures for Weuring et al., 2020


Figure Caption

Fig 4

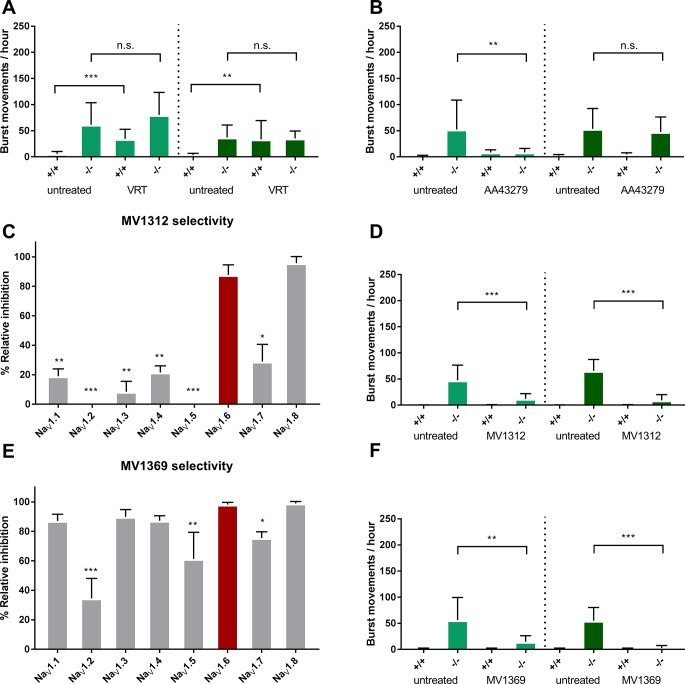

Characterization of novel compounds and their effect on Scn1Lab knockout burst movements by 60 minute (light green) or 18 hours (dark green) exposure A) 10μM Veratridine B) 5uM AA43279 C) MV1312 show blocking selectivity for Na_V1.6 over the other human ion channel subtypes but not Na_V1.8. D) 5μM MV1312 E) MV1369 shows blocking selectivity for Na_V1.6 over Na_V1.2, Na_V1.5 and Na_V1.7. F) 50μM MV1369. Dashed lines indicate a novel experimental plate with a seperate experimental group. Error bars = S.D., (-/-) = Scn1Lab knockout, locomotor assays n = 12 per group, selectivity assays n = 3 per group, * <0.05 **<0.005 ***<0.0005.
