Figure 8

ID
ZDB-IMAGE-200104-31
Source
Figures for Morbiato et al., 2019
Figure Caption

Figure 8

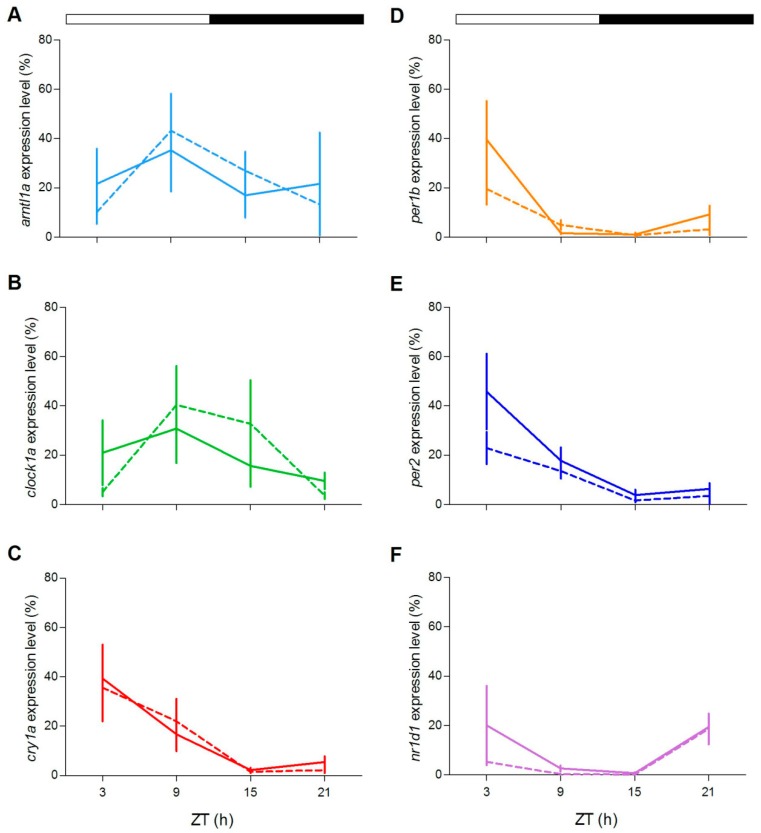

Daily expression levels of clock genes in zebrafish adult liver. qPCR analysis of clock (A,B,D,F) and light-regulated clock (C,E) gene expression in the liver of zebrafish exposed to LD cycles. For all panels, each point represents the mean ± SEM (n = 4). gr+/+= solid line; gr−/− = dotted line. For more details see Figure 4.
